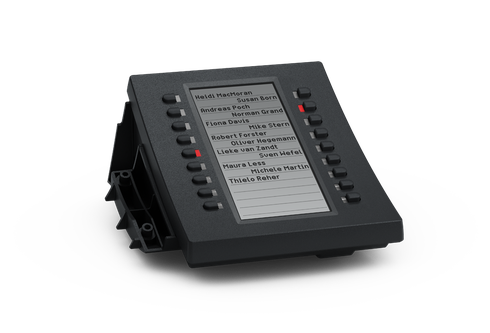

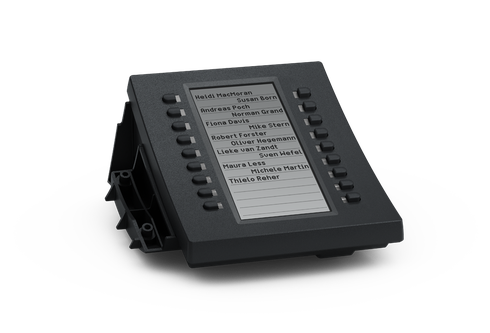

D3 Expansion Module
Expanding your Telephone to manage large numbers of calls
Increase the available function keys on D3xx phones with USB port, allowing users to manage a large number of extensions and calls. The D3 Expansion Module provides an additional 18 multicolored LED keys that can be programmed for functions such as line, speed dial, busy lamp field and presence indication. A multicolored LED key presents call or presence status, and the high-resolution display provides a visual interface that can be easily configured and labelled via the phone’s web interface or directly on the phone itself. The D3 connects to the telephone using a USB cable and up to three D3 expansion modules can be daisy-chained to provide 54 function keys.
Quick summary
-
18 highly configurable, self-labelling, multicolored LED keys
-
High-resolution black and white display with backlight
-
Daisy-chain up to 3 modules (54 function keys)
-
Plug and play
-
Power supplied from phone via USB port
.png)
General Information
- Dimensions in millimeters (approx.):
- 140x 170x 80 (LxWxD)
- Weight (approx.): device 300g
- Input voltage: 5Vdc (SELV)
- Power supply: USB or 5Vdc power adapter, 10 Watts
- USB 2.0 port, type A
- USB 2.0 port, type B
- Environmental conditions:
- Ambient temperature: 0°C to 35°C (32°F to 95°F)
- Non-operation: -10°C to 45°C (14°F to 113°F)
- Humidity: 5% to 95% (non-condensing)
- Included in delivery:
- Base unit
- USB cable type A/type B
- Quick Start Guide
- Color: black-blue
- Warranty: 2 Years
- Part Number:
- 00004327
Benefits
- High-resolution graphical display with backlight
- 18 freely programmable multicolor LED function keys
- Daisy chainable
- Fully configurable via host phone
- Powered by host phone
Installation
- Plug and Play
- Completely configurable via host phone
