D7 Series

D787 Desk Phone

Quick summary

  • 4.3” (480x272) color LCD
  • 6 (24) configurable self-labeling multicolor LED keys
  • 2 USB ports
  • WLAN
  • Electronic Hook Switch (EHS)1 support for wireless headsets
  • D7 or D7C Expansion Module1 ready
  • 2-port Gigabit Ethernet switch (RJ45)
  • 3-year standard warranty

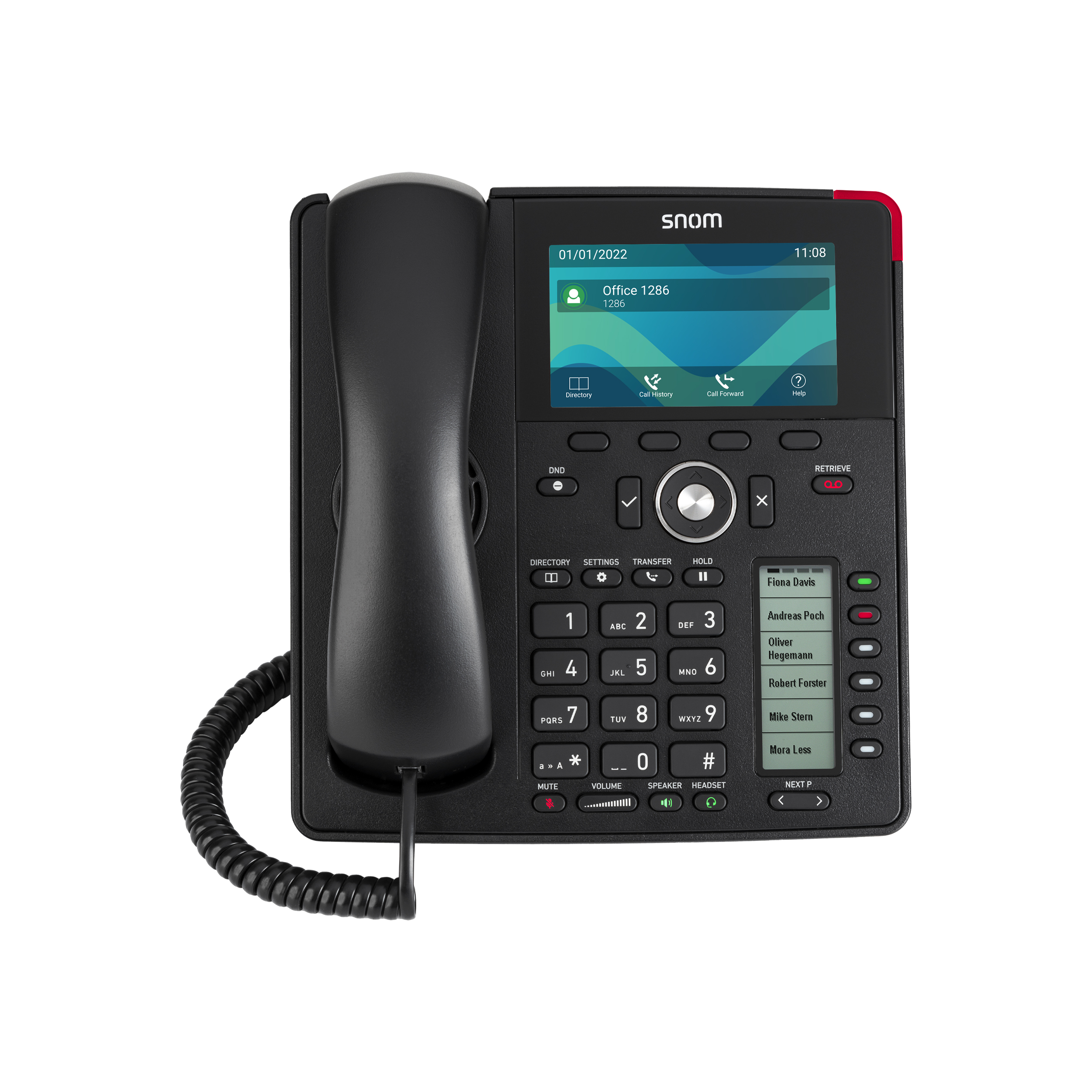

e0f956a6-5d27-422a-b87e-c123a5fd8bb8/website_D787_Front.jpg

This is a carousel. Use Next and Previous buttons to navigate.

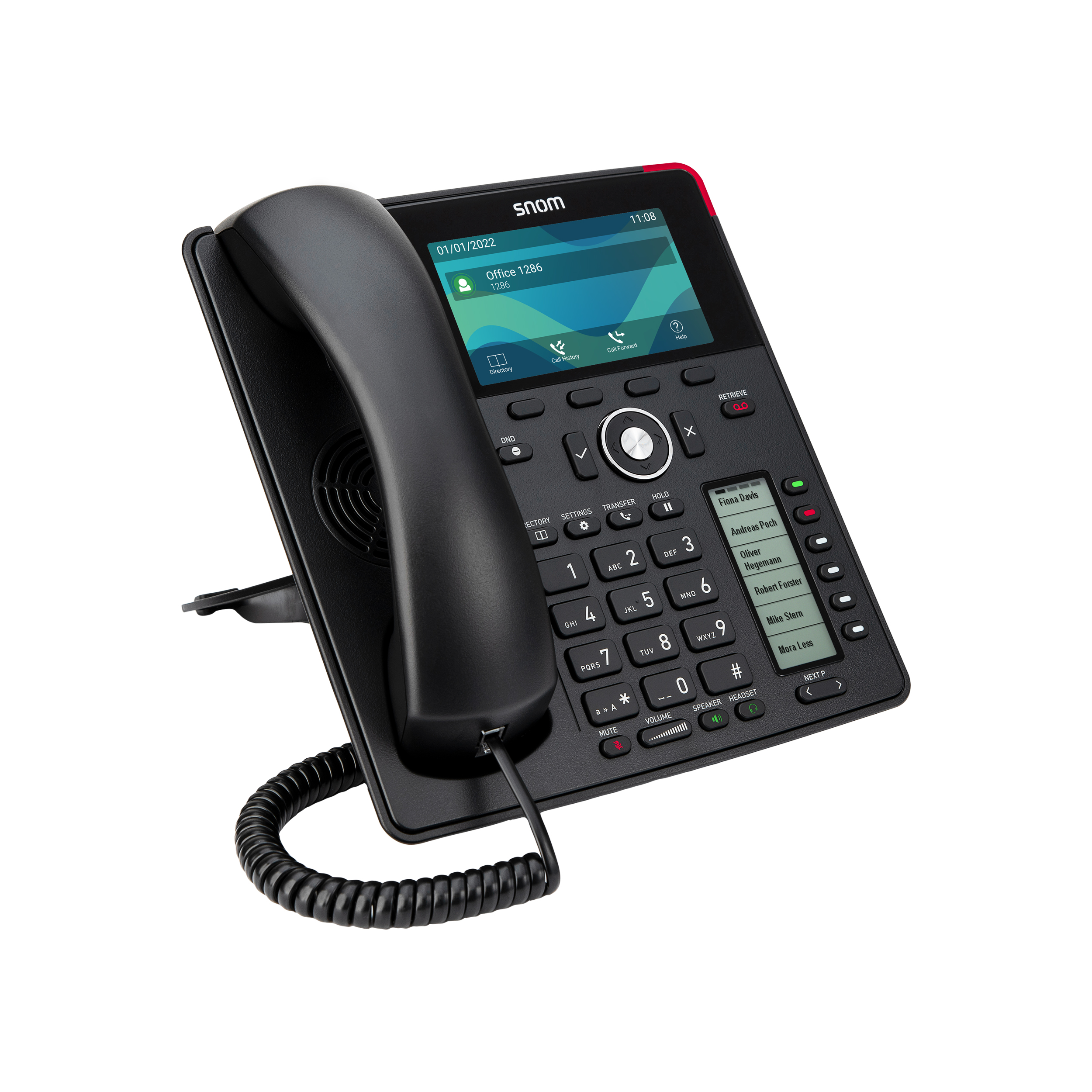

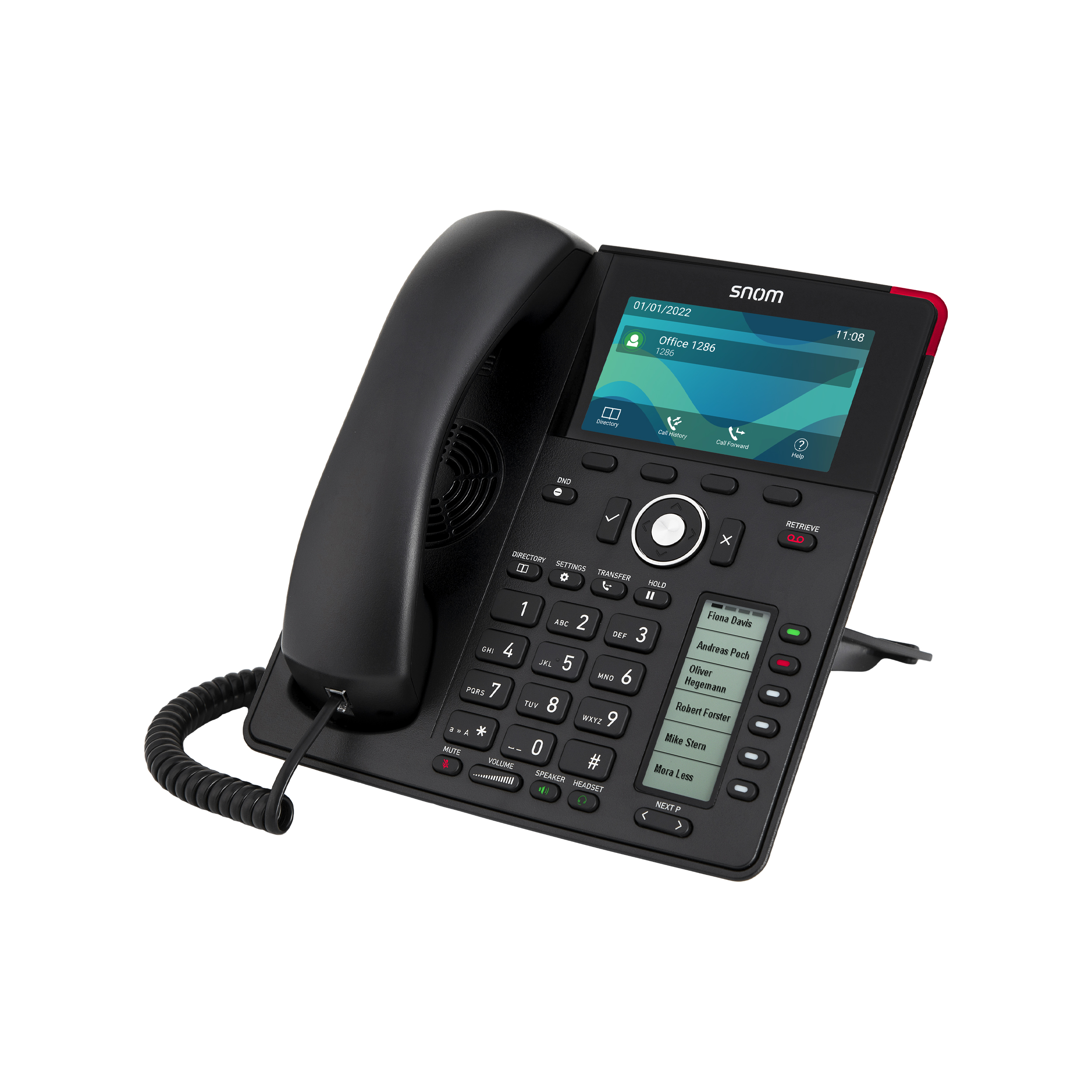

View 1 - D787 Desk Phone View 2 - D787 Desk Phone View 3 - D787 Desk Phone

Phone Features

  • 12 SIP identities / accounts
  • XML browser
  • Call lists for dialed, received, missed calls
  • Local directory with 1000 entries
  • Multiple language support
  • DTMF in-band / out-of-band / SIP-INFO
  • Interoperable with all major IP PBX platforms
  • Speed dialing
  • URL dialing
  • Local dial plan
  • Automatic redial on busy
  • Call completion (busy / unreachable)2
  • Caller identification
  • Call waiting
  • Call blocking (deny list)
  • Auto answer
  • Hold
  • Music on hold2
  • Handling of up to 4 simultaneous calls
  • Blind and attended transfer
  • Call forwarding
  • 3-way conferencing on the phone
  • Extension monitoring, call pickup2
  • Call park, call unpark2
  • Multicast paging
  • DND mode (do not disturb)
  • Keyboard lock
  • Client matter code (CMC)2

Audio/Codecs

  • G.711 A-law, u-law
  • G.722 (wideband)
  • G.726, G.729ab, GSM 6.10 (FR)
  • Built-in assignable ringtones
  • Comfort noise generator (CNG)
  • Voice activity detection (VAD)


Setup

  • Configurable through web interface

Provisioning

  • Automatic loading of settings via HTTP / HTTPS / TFTP
  • DHCP Options 66/67
  • Snom Redirection Service
  • Remote management via TR-069 / TR-111

Protocols

  • SIP (RFC3261)
  • DHCP, NTP
  • HTTP / HTTPS / TFTP
  • LDAP (Directory)
  • Dual Stack IPv4 / IPv6

User Interface

  • Localization (language, time, dial tone)
  • Red LED for call indication / message waiting
  • 4 context sensitive keys
  • 6 programmable line / function keys with multicolor LEDs
  • Dedicated keys for: Message, DND, directory, menu, transfer, hold, page switch
  • Audio keys with LED indication: Mute, speakerphone, headset
  • Volume key
  • 5-way navigation key
  • OK and cancel keys
  • Menu-driven user interface

Security

  • 802.1X Authentication and EAPOL
  • Transport layer security (TLS)
  • SRTP (RFC3711), SIPS, RTCP
  • HTTPS server / client
  • Password-protected web interface
  • VPN support
  • VLAN (IEEE 802.1Q)
  • LLDP-MED, RTCP-XR

Dimensions, Specifications, and Weight

Dimensions (Approximately)

  • 8.07" x 3.54" x 9.06"
  • With desk stand: 8.07" x 8.66" x 7.48"

Weight (Approximately)

  • 2 lbs
  • Input voltage: 5V DC (SELV)
  • Power supply: PoE or 5Vdc power adapter1, 10 Watts
  • Handset: 4P4C
  • Headset: 4P4C; Support for Snom EHS Advanced1
  • Hearing aid compatible (HAC) handset
  • 2 USB 2.0 host ports, Type A, Hi / Full / Low-speed
  • 2 RJ45-8P8C Gigabit Ethernet port
  • WLAN IEEE 802.11n/ac
  • Environmental Conditions
  • Ambient temperature: 0°C to 35°C (32°F to 95°F)
  • Storage temperature: -10°C to 45°C (14°F to 113°F)
  • Humidity: 5% to 95% (non-condensing)

Included in Delivery

  • Phone unit
  • Foot stand
  • Handset with cord
  • Ethernet cable
  • Quick Start Guide

Product Details

  • Color: Black
  • Warranty: 3 years
  • D787 Part Number: 00004621 (all markets)
  • D787 APN: 80-S179-00
