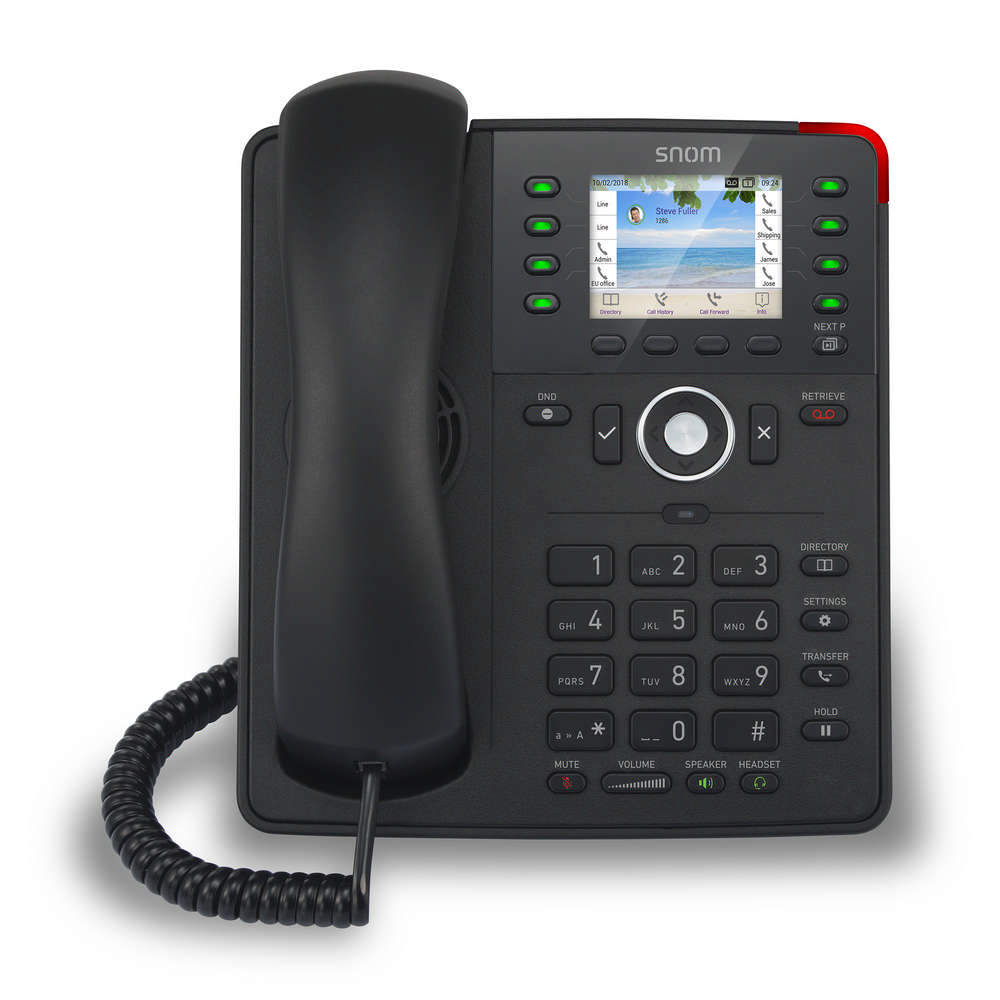

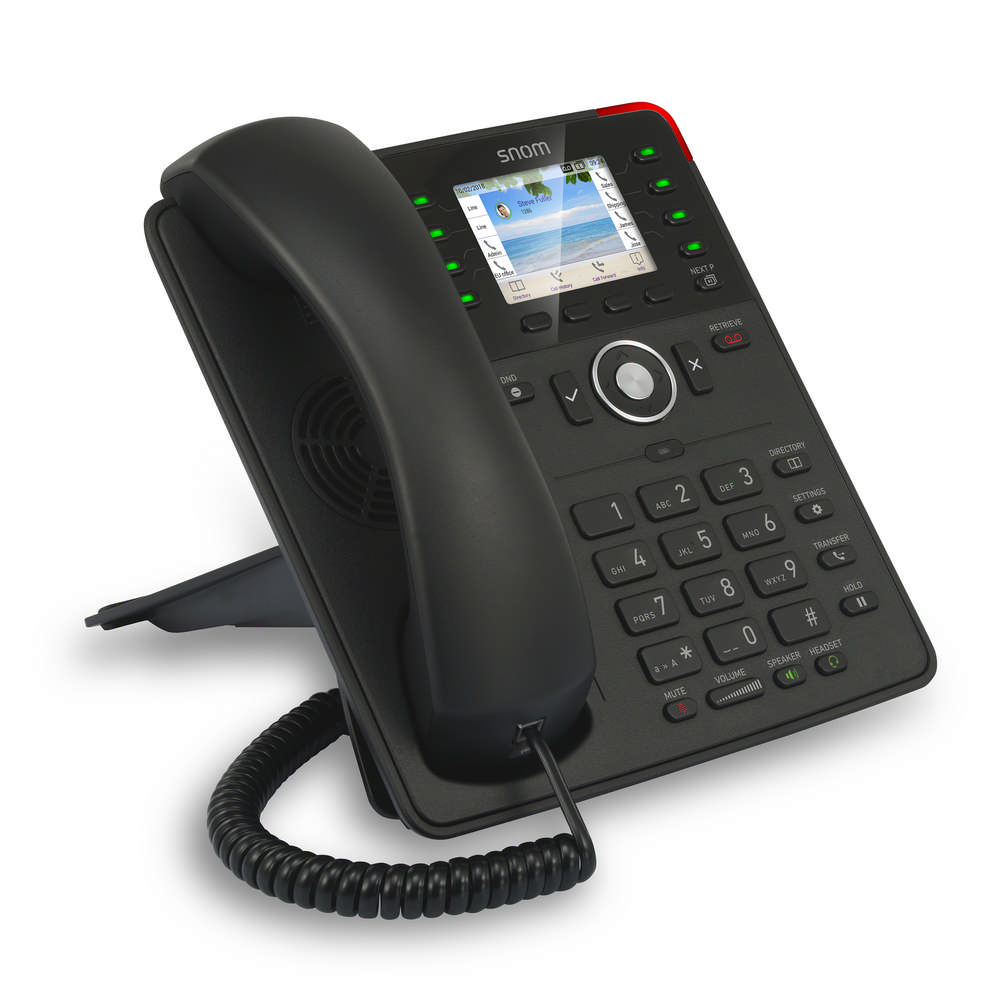

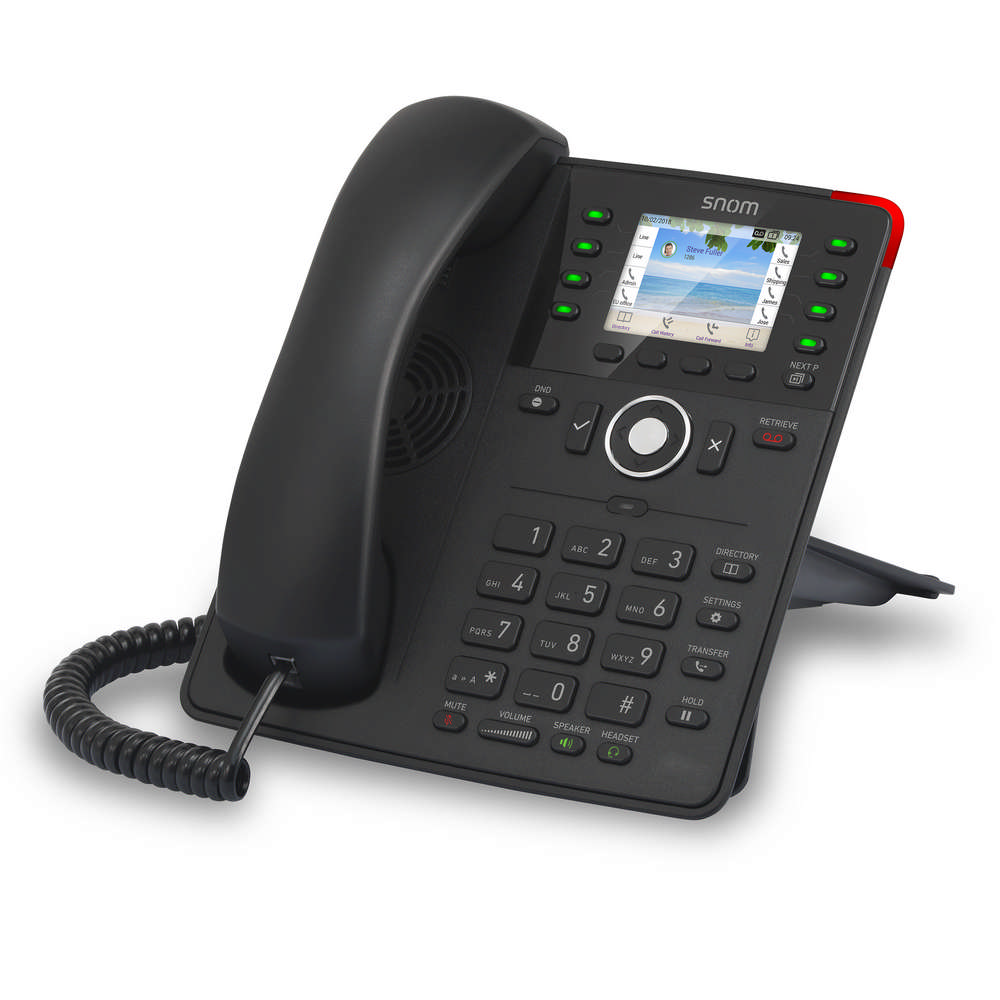

D735 Desk Telephone

The Snom D735 SIP Color Deskset features an intuitive design with advanced technology and connectivity. Eight self-labeling programmable feature keys surround a 2.8- inch, 320 x 240 pixel color LCD display. Scroll between four pages of keys with a dedicated button. A proximity sensor reacts as your hand gets close to the phone to dynamically adjust the display. Opus codec support gives you the freedom to enjoy crystal-clear audio or high-quality narrowband audio, depending on your network conditions. Zero touch provisioning eliminates the need for manual labor typically involved with installation. Power over Ethernet (PoE) support and dual Ethernet ports makes the system cost-effective and easy to use. The USB port allows additional connectivity, including up to three D7 expansion modules for increased visibility and one-button options. The system features multiple configurations, including eight programmable feature keys, four soft keys and 15 dedicated feature keys. You'll feel safe with powerful security features like VPN support.

Quick summary

  • High-resolution color display
  • Motion sensor
  • 8 (32) configurable self-labeling multicolor LED keys
  • USB port
  • Elegant design
  • 3-year standard warranty

Phone Features

  • 12 SIP identities / accounts
  • XML browser
  • Call lists for dialed, received, missed calls
  • Local directory with 1000 entries
  • Multiple language support
  • DTMF in-band / out-of-band / SIP-INFO
  • Interoperable with all major IP PBX platforms
  • Speed dialing
  • URL dialing
  • Local dial plan
  • Automatic redial on busy
  • Call completion (busy/unreachable)(2)
  • Caller identification
  • Call waiting
  • Call blocking (deny list)
  • Auto answer
  • Hold
  • Music on hold(2)
  • Blind and attended transfer
  • Call forwarding
  • 3-way conferencing on the phone
  • Extension monitoring, call pickup(2)
  • Call park, call unpark(2)
  • Multicast paging
  • DND mode (do not disturb)
  • Keyboard lock
  • Client matter code (CMC)(2)
  • Unified Communications ready

Audio

  • Codecs:
    • G.711 A-law, μ-law
    • G.722 (wideband)
    • G.726, G.729AB, GSM 6.10 (FR)
  • Built-in assignable ringtones
  • Comfort noise generator (CNG)
  • Voice activity detection (VAD)

Setup

  • Configurable through web interface
  • Provisioning:
    • Automatic loading of settings via HTTP/HTTPS/TFTP
    • DHCP Options 66/67
    • Snom Redirection Service
    • Remote management via TR-069 / TR-111

Protocols

  • SIP (RFC3261)
  • DHCP, NTP
  • HTTP / HTTPS / TFTP
  • LDAP (Directory)
  • Dual Stack IPv4 / IPv6

User Interface

  • Localization (language, time, dial tone)
  • Red LED for call indication / message waiting
  • 4 context sensitive keys
  • 32 (8 physical) programmable line / function keys with multicolour LEDs
  • Dedicated keys for: Message, DND, directory, menu, transfer, hold, page
  • Audio keys with LED indication: Mute, speakerphone, headset
  • Volume key
  • 5-way navigation key
  • OK and cancel keys
  • Sensor-assisted user interface

Security

  • 802.1X Authentication and EAPOL
  • Transport layer security (TLS)
  • SRTP (RFC3711), SIPS, RTCP
  • HTTPS server/client
  • Password-protected web interface
  • VPN support
  • VLAN (IEEE 802.1Q)
  • LLDP-MED, RTCP-XR

Specifications, Weights and Dimensions

  • Dimensions (approx.):
    • 7.28" x 3.54" x 8.66"
    • With desk stand: "7.28" x 8.46" x 6.81"
  • Weight (approx.): 1.8 lbs
  • Input voltage: 5V DC (SELV)
  • Power supply: PoE or 5Vdc power adapter(1), 10 Watts
  • Handset: 4P4C
  • Headset: 4P4C; Support for Snom EHS Advanced(1)
  • Hearing aid compatible (HAC) handset
  • 1 x USB 2.0 host port, Type A
  • Environmental conditions:
    • Ambient temperature: 0°C to 35°C (32°F to 95°F)
    • Storage temperature: -10°C to 45°C (14°F to 113°F)
    • Humidity: 5% to 95% (non-condensing)
  • Included in delivery:
    • Phone unit
    • Foot stand
    • Handset with cord
    • Ethernet cable
    • Quick Start Guide
  • Color: Black
  • Warranty: 3 years
  • Part Number: 00004389 (all markets)
  • APN: 80-S052-00
(1) Optional accessory
(2) If supported by PBX

APN numbers for optional accessories

80-S007-00 D7 Expansion Module (black)
26-350200-3UL Power Adapter Snom A6 /US clip
89-S015-00 Snom EHS Advanced
00-S013-00 Wallmount plate for 7-series
89-4083-00 A100D Binaural headset
89-4082-00 A100M Mono headset
80-S058-00 A210 Wi-Fi USB Dongle
80-S050-00 A230 DECT USB Dongle
80-S094-00 A171 DECT Headset
