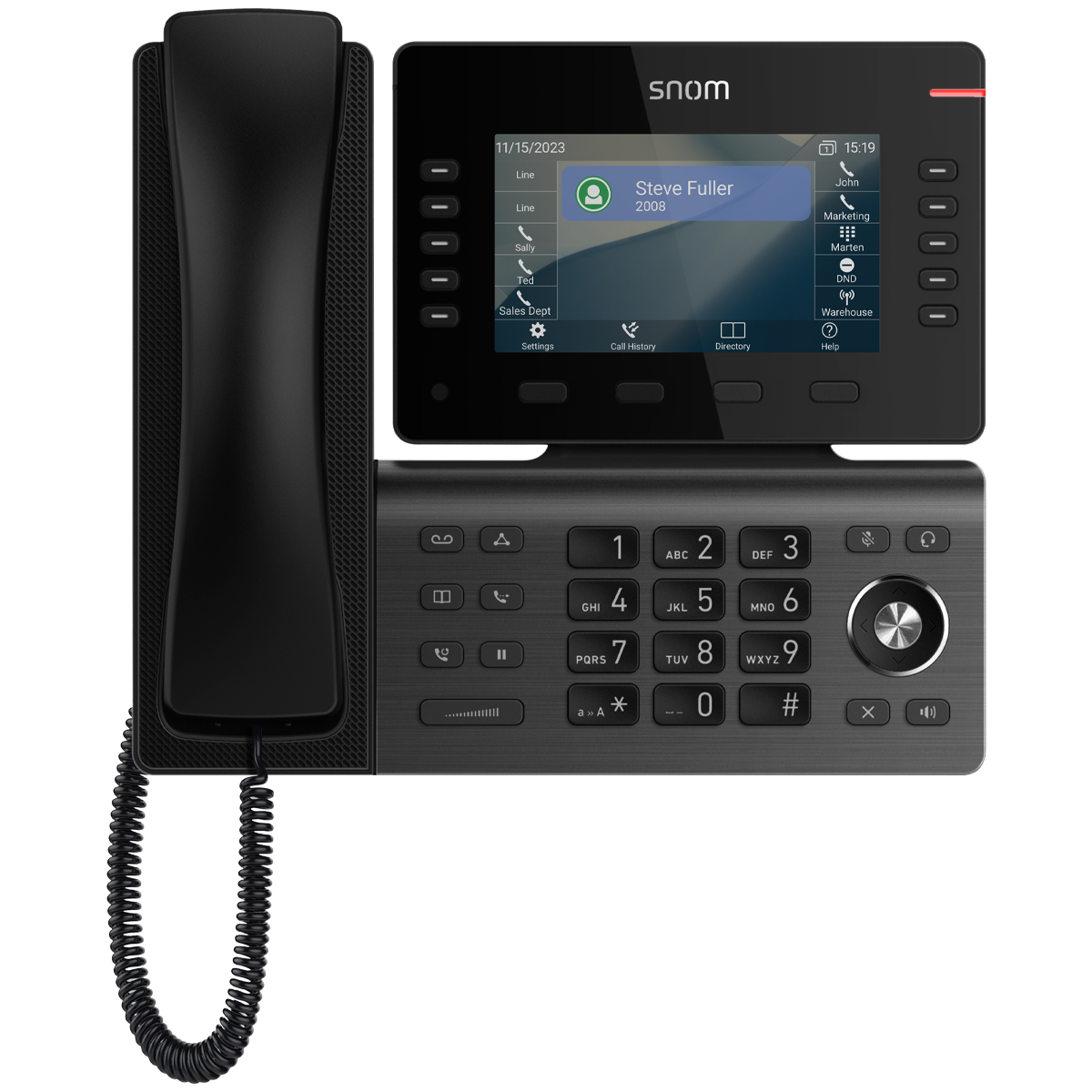

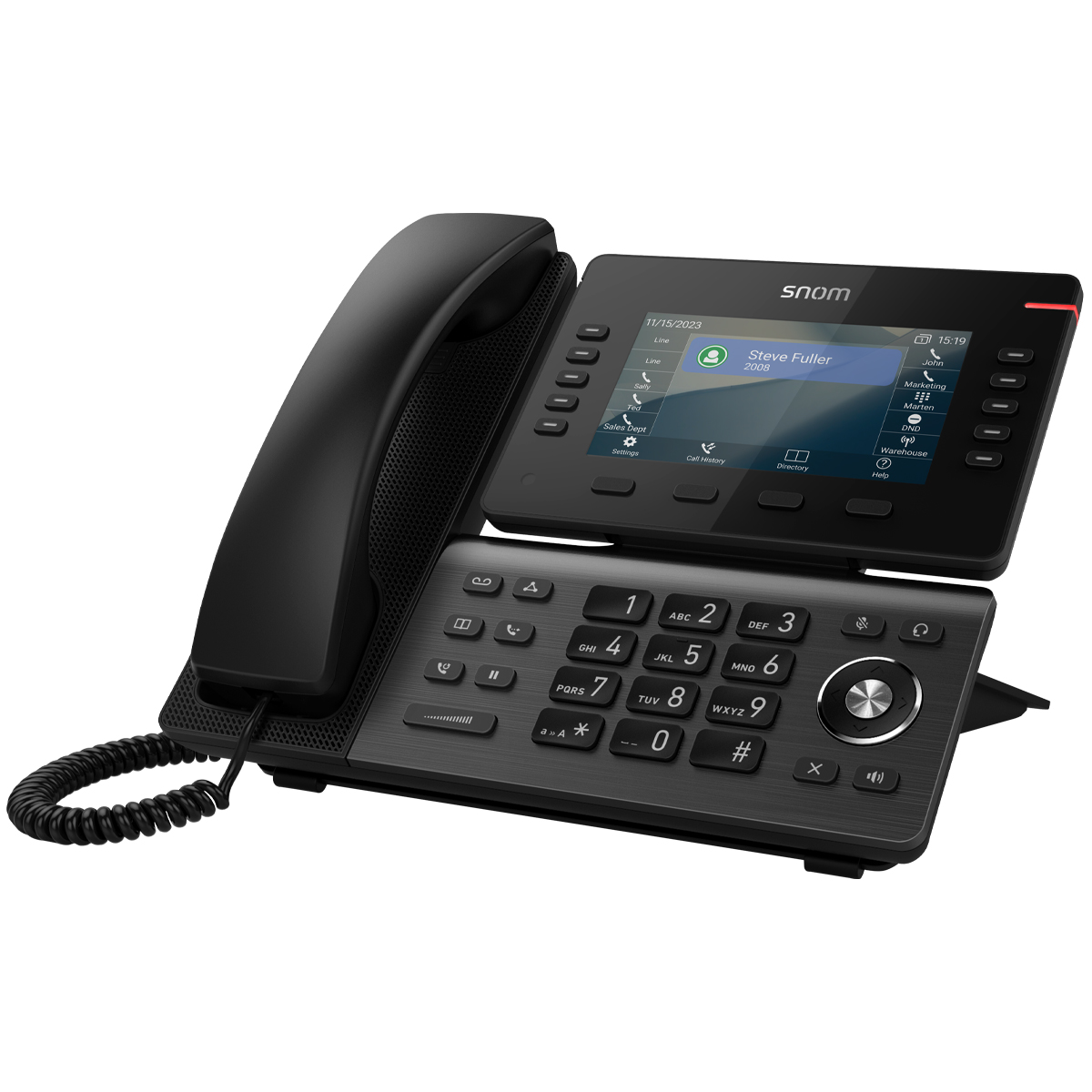

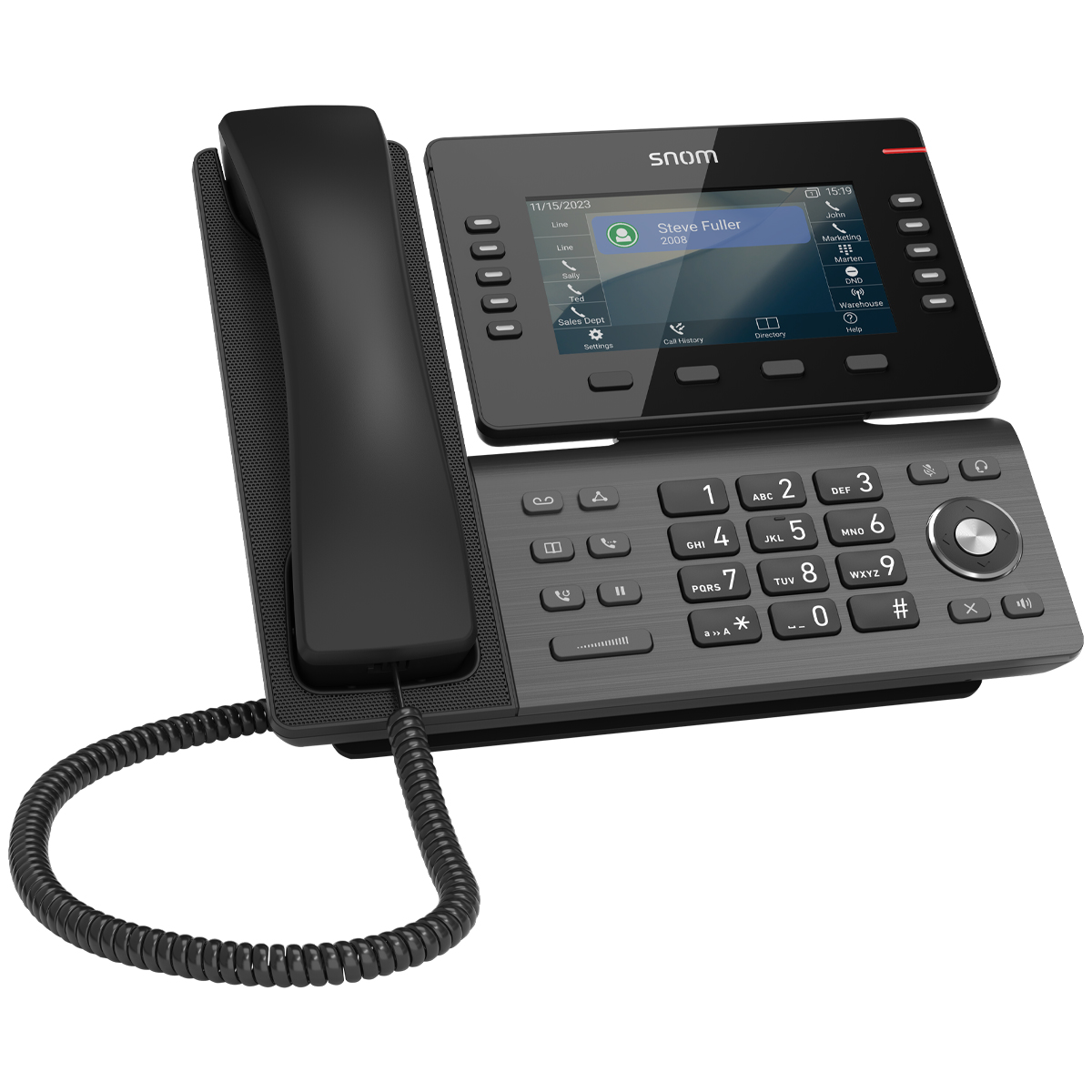

D815 Desk Telephone

Phone Features

• 12 SIP identities / accounts
• XML browser
• Call lists for dialed, received, missed calls
• Local directory with 1000 entries
• Multiple language support
• DTMF in-band / out-of-band / SIP-INFO
• Interoperable with all major IP PBX platforms
• Speed dialing
• URL dialing
• Local dial plan
• Automatic redial on busy
• Call completion (busy / unreachable)2
• Caller identification
• Call waiting
• Call blocking (deny list)
• Auto answer
• Hold
• Music on hold2
• Blind and attended transfer
• Call forwarding
• 3-way conferencing on the phone
• Extension monitoring, call pickup2
• Call park, call unpark2
• Multicast paging
• DND mode (do not disturb)
• Keyboard lock
• Client matter code (CMC)2

Audio/Codecs

• G.711 A-law, u-law
• G.722 (wideband)
• G.726, G.729ab, GSM 6.10 (FR)
• Built-in assignable ringtones
• Comfort noise generator (CNG)
• Voice activity detection (VAD)

Setup

• Configurable through web interface
• Provisioning
• Automatic loading of settings via HTTP / HTTPS / TFTP
• DHCP Options 66/67
• Secure Redirection and Provisioning Service (SRAPS) support
• Remote management via TR-069 / TR-111

Protocols

• SIP (RFC3261)
• DHCP, NTP
• HTTP / HTTPS / TFTP
• LDAP (Directory)
• Dual Stack IPv4 / IPv6

User Interface

• Localization (language, time, dial tone)
• Red LED for call indication / message waiting
• 4 context sensitive keys
• 10 programmable line / function keys with multicolor LEDs
• Dedicated keys for: Message, call history, transfer, hold, conference
• Audio keys with LED indication: Mute, speakerphone, headset
• Volume key
• 5-way navigation key
• Cancel key
• Menu-driven user interface

Security

• 802.1X Authentication and EAPOL
• Transport layer security (TLS)
• SRTP (RFC3711), SIPS, RTCP
• HTTPS server / client
• Password-protected web interface
• VPN support
• VLAN (IEEE 802.1Q)
• LLDP-MED, RTCP-XR

Specifications, Weight & Dimensions

• Dimensions (Approximately)
• Without foot stand: 9.57″ x 8.27″ x 3.23″
• With foot stand: 9.57" x 6.8" x 7"

• Weight (Approximately)
• 2.3 lbs
• Input voltage: 5V DC (SELV)
• Power supply: PoE or 5Vdc power adapter1, 10 Watts
• Handset: 4P4C
• Headset: 4P4C; Support for Snom EHS Advanced1
• Hearing aid compatible (HAC) handset
• 2 USB 2.0 host ports, Type A, Hi / Full / Low-speed
• 2 RJ45-8P8C Gigabit Ethernet ports
• WLAN IEEE 802.11n/ac

• Environmental Conditions
• Ambient temperature: 0°C to 35°C (32°F to 95°F)
• Storage temperature: -10°C to 45°C (14°F to 113°F)
• Humidity: 5% to 95% (non-condensing)
• Included in Delivery
• Phone unit
• Foot stand
• Handset with cord
• Ethernet cable
• Quick Start Guide
• Color: Gunmetal Black
• Warranty: 3 years
• D812 APN: 80-S212-00

APN # for Optional Accessories

• D8C Expansion Module (Black): 80-S127-00
• Power Adaptor Snom A6 / US Clip: 26-350200-3UL
• Snom EHS Advanced: 89-S015-00
• A100D Binaural Headset: 89-S020-00
• A100M Mono Headset: 89-S019-00
• A210 WiFi USB Stick: 89-S035-00
• A230 DECT USB Stick: 80-S050-00
• A330M Mono USB Headset: 80-S149-00
• A330D Binaural USB Headset: 80-S150-00
