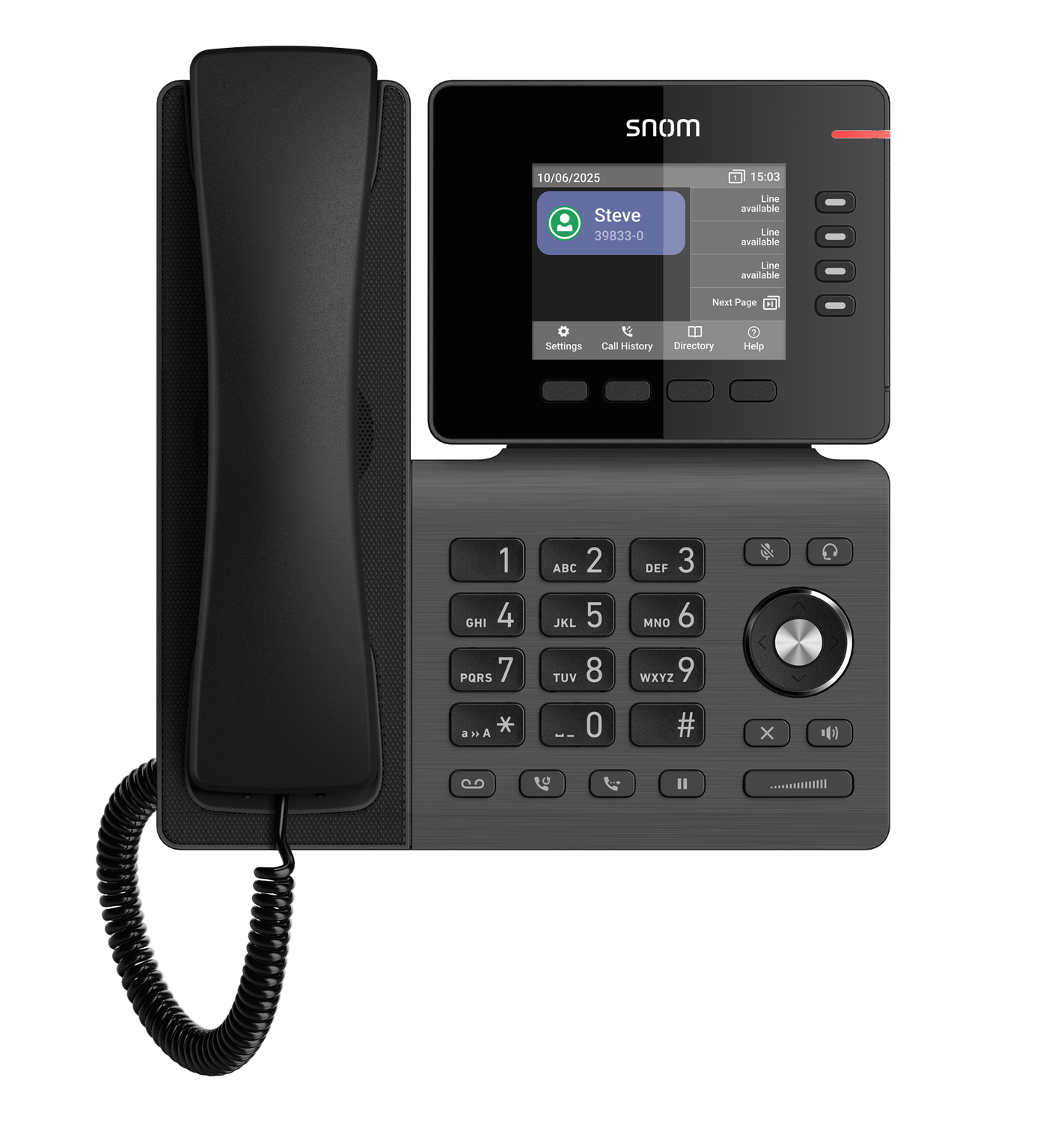

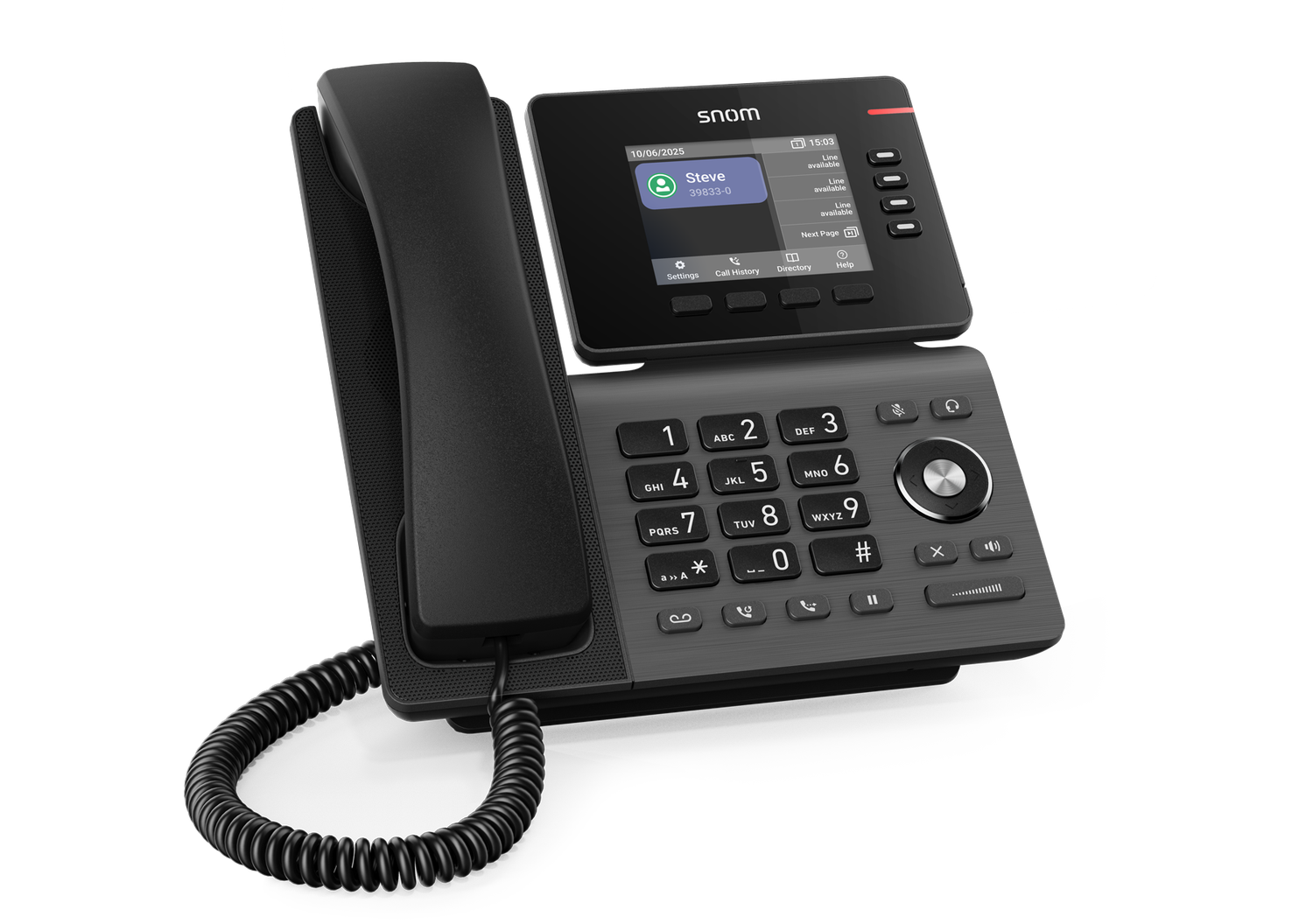

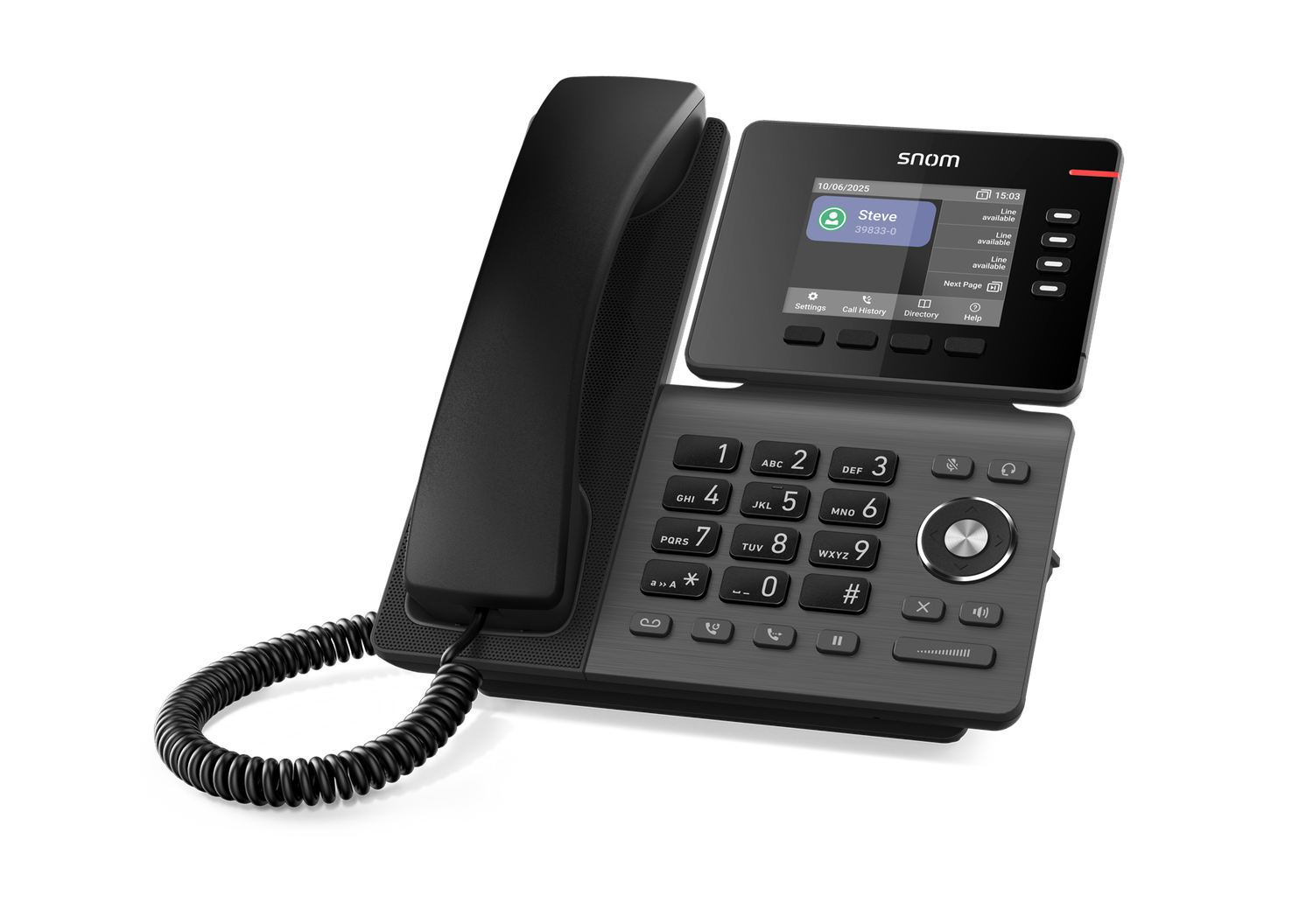

D810 Desk phone

Basic

• Product information

  • IP desk phone D810W

    |

    gunmetal black

    |

    PN 00004737

  • Anti-bacterial housing

  • Operating system: Linux

• Placement

  • Indoor

    ,

    desktop

    ,

    wall mounting¹

Dimensions and weight

• Dimensions (L × W × H, approx.)

  • 210 mm × 200 mm × 45 mm



    without footstand

  • 190 mm × 200 mm × 165 mm



    with footstand



    (high angle 46°)

  • 190 mm × 200 mm × 140 mm



    with footstand



    (low angle 28°)

• Weight (approx.)

  • 0.7 kg



    with footstand

Display and indicators

• Display

  • TFT liquid crystal display (LCD):



    IPS panel

    ,

    true colour

    ,

    backlit

  • Size (diagonal): 3.36″ (85 mm)

  • Size (W × H): 68 mm × 50 mm

  • Resolution: 320 × 240 pixel

• 5 LED indicators

  • Call status indication:



    1 red LED

  • Function key status indication:



    4 multicolour LEDs

Keypad and function keys

• 35 hard keys in total

  • 12 keys (standard ITU telephone keypad)

  • 5-way navigation key

  • 4 context-sensitive function keys

  • Programmable function keys:

    • 4 SmartLabel keys



      (with multicolour LED)

    • Key mapping of up to 16 functions (4 keys × 4 pages)

  • 5 dedicated audio keys

    • Mute

    • Speakerphone

    • Headset

    • Volume + / -



      (rocker)

  • 5 dedicated function keys

    • Message

    • Redial

    • Transfer

    • Hold

    • Cancel

  Keyboard lock

  Expansion module connection via USB port for up to 3 × D8C¹

Audio devices, codecs and features

• Casing microphone

  |

  Casing speaker

  • Frequency range:



    100 Hz - 8.0 kHz

  • Speakerphone mode:



    Full duplex

    ,

    HD audio

    ,

    Acoustic Echo Cancellation (AEC)

• Corded handset

  • Microphone

    |

    Handset earpiece

  • Frequency range:



    150 Hz - 8.0 kHz

  • Noise cancellation

    ,

    HD audio

    ,

    Hearing aid compatible (HAC)

• Audio codecs

  • G.711 (A-law, μ-law), G.722, G.723.1, G.726, G.729AB, GSM6.10 (FR), Opus

• Dual-tone multi-frequency signalling (DTMF / RFC2833):

  • SIP-INFO

    ,

    in-band

    ,

    out-of-band

• Related features

  • Comfort Noise Generator (CNG)

  • Voice Activity Detection (VAD)

  • Audio response time

  • Adaptive jitter buffer

  • Packet loss concealment (PLC)

Interfaces and connections

• Power options

  • Power over Ethernet (PoE)

    • IEEE 802.3af

      ,

      class 3

      |

      IEEE 802.3az³

  • Power adapter¹

    • 100 - 240 V AC, 50 - 60 Hz | 5 V DC (SELV), 2 A, 10 W¹

• Wired interfaces

  • Power adapter:



    coaxial power connector (socket)

  • Network connectivity:



    2 × RJ45-8P8C sockets (NET, PC)

    →



    Gigabit Ethernet (GbE)

  • USB connectivity:



    USB 2.0 type A port

  • Corded handset:



    RJ9-4P4C socket

  • Headset:



    RJ9-4P4C socket

  • EHS adapter:¹

    RJ12-6P6C socket (EHS)

• Sensors

  • Hook switch sensor

User interfaces and setup

• Configuration and setup via menu-driven web user interface (WUI)

  • Password-protected login

  • Secure web server/client (HTTPS)

• Configuration and setup via menu-drivenphone user interface (PUI)
• Automatic configuration via provisioning

  • Loading of settings and firmware via HTTP, HTTPS, TFTP

  • Supported DHCP provisioning options 43 / 60 / 66 / 67

  • Secure Redirection And Provisioning Service (SRAPS) support
  • Remote management via TR-069 / TR-069 Annex G (TR-111) / TR-369

  • Plug & Play (PnP) support

• Localization

  • Languages

  • Time zone

    ,

    dial tone

• Diagnostic

  • SIP / PCAP trace

  • Syslog

• Related features

  • Dual firmware partition

Networking technologies and protocols

• Wireless LAN

  • WLAN encryption

    • WPA-PSK / WPA2-PSK, WPA / WPA2, WEP

  • Wireless range (approx.)

  • • Up to 250 m outdoor range

• Network technologies

  • OpenVPN

    , VLAN (IEEE 802.1q)

• VoIP related protocols and techniques

  • SIP, SDP, RTP, RTCP,

    RTCP-XR

    ,

    SIP REFER method (RFC 3515)

    ,

    rport (RFC 3581)

    , ENUM,

    ICE

    , STUN

• Secure VoIP protocols

  • SIPS (SIP over TLS)

    , SRTP, SRTCP

• Network protocols

  • IPv4 / IPv6 (dual stack)

    , DHCP,

    NTP

    , LDAP, LLDP-MED,

    HTTP

    ,

    T

    FTP,

    L

    2TP

• Secure network protocols

  • TLS V1.2HTTPS, IEEE 802.1X (EAPoL)

• Remote management protocols

  • TR-069

    ,

    TR-069 Annex G (formerly TR-111)

    ,

    TR-369 (USP)

Directory support and call features

• 12 SIP identities / accounts

  • Up to 12 simultaneous calls

• Directory support

  • LDAP (server-based directory)
  • Local directory with up to 1,000 entries

• Outgoing call features

  • Speed dialling via function keys

  • Speed dialling

  • URL dialling
  • Local dial plan

  • Redial (via dialed calls list)

  • Automatic redial on busy

  • Caller identification (CLIP)

  • Calling Line Identification Restriction (CLIR)

  • Call completion (busy/unreachable)²
  • Intercom
  • Multicast paging

• Incoming call features

  • Call waiting/swapping

  • Auto answer

  • Call barring / blocking:



    deny list

    ,

    anonymous calls

    ,

    Do Not Disturb (DND) mode

  • Call diversion

  Call deflection

• Connected call features

  • Mute microphone

  • Hold

  • Music on hold²

  • Blind call transfer

  • Attended call transfer

  • 3-way (2+1) local conferencing

  • Call park / unpark²

  • Client Matter Code (CMC)²

• Related features

  • Call history lists of missed, received, dialed, rejected, and deflected calls

  • Extension monitoring (Busy lamp field), call pickup²

Package contents

• Hardware

  • IP desk phone D810W

  • Corded handset

  • Footstand

  • Ethernet cable:



    1.5 m

• Documentation

  • Safety instructions

Environmental conditions

• Operating ambient temperature:

  • 0 °C - +35 °C

• Nonoperating (storage) temperature:

  • -10 °C - +45 °C

• Humidity (non-condensing):

  • 5 % - 95 %

Snom accessories and compatible devices

1. ¹

   Available separately

2. ²

   If supported by PBX
