D8 Series

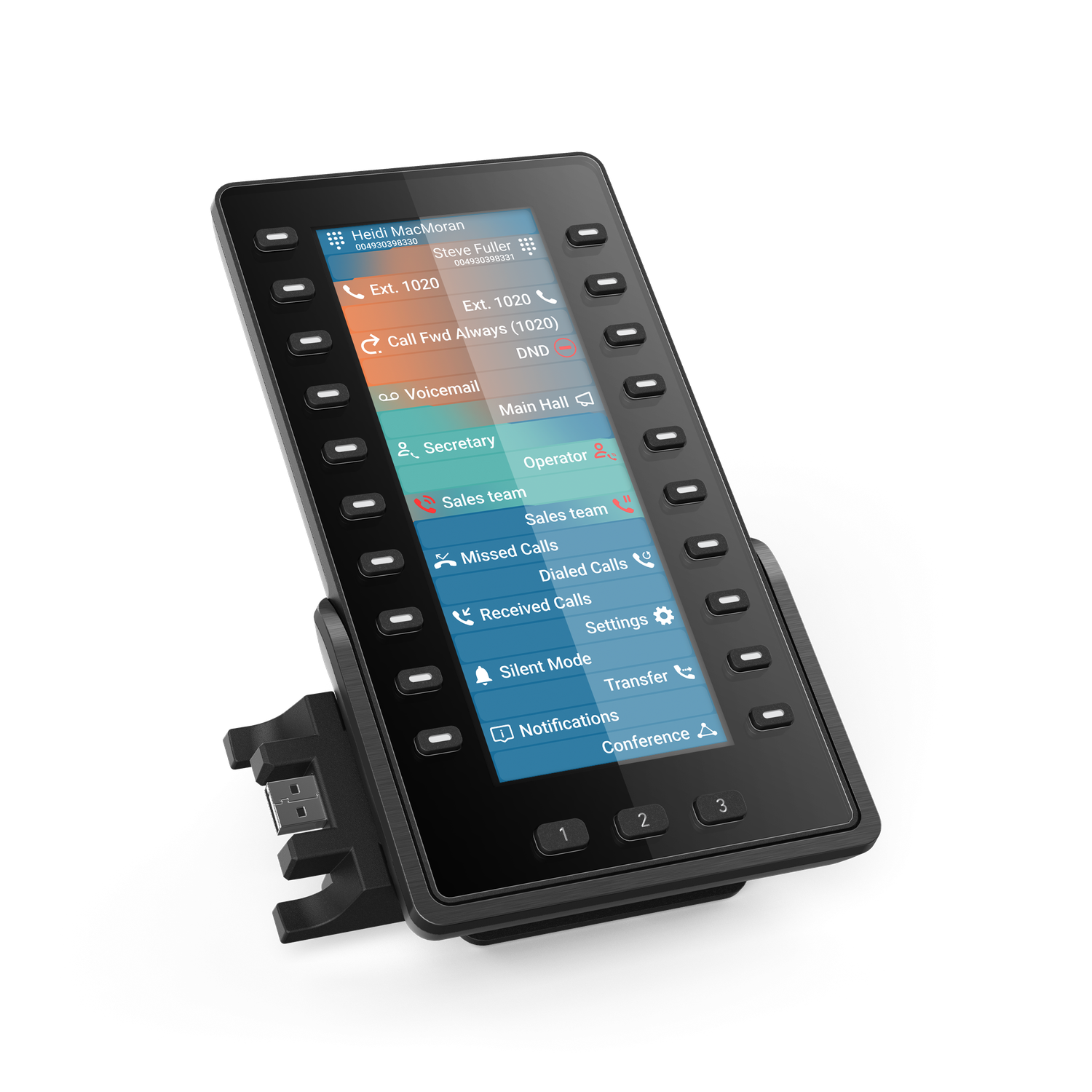

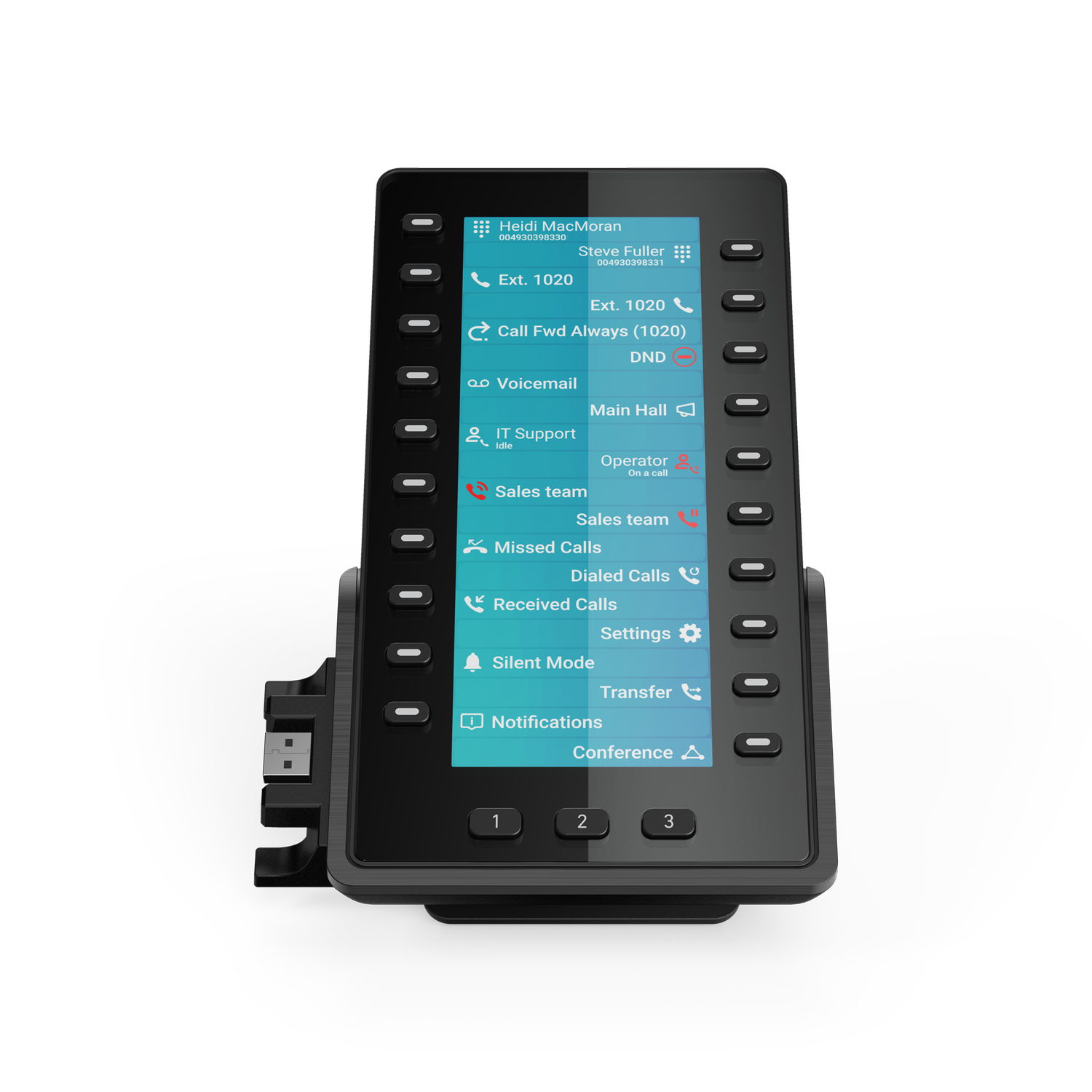

D8C Expansion module

Quick summary

  • 6.8" high-resolution color display
  • 20 (60) configurable self-labeling multi-color LED keys
  • Daisy-chain up to 3 models
  • Plug and play
  • Power supplied by phone via USB port
  • Revised user-interface
  • Theme and icon support
  • Custom background image support
  • 3-year standard warranty
b2fa0f75-7b14-42fd-a7c9-3bb6e4f6f599/snom_d8c_top_1800px.png__1500x1500_subsampling-2.png

This is a carousel. Use Next and Previous buttons to navigate.

View 1 - D8C Expansion module View 2 - D8C Expansion module View 3 - D8C Expansion module View 4 - D8C Expansion module View 5 - D8C Expansion module View 6 - D8C Expansion module View 7 - D8C Expansion module View 8 - D8C Expansion module View 9 - D8C Expansion module

Features

  • 6.8" (480px x 1280px) color LCD
  • Dedicated button for toggling pages

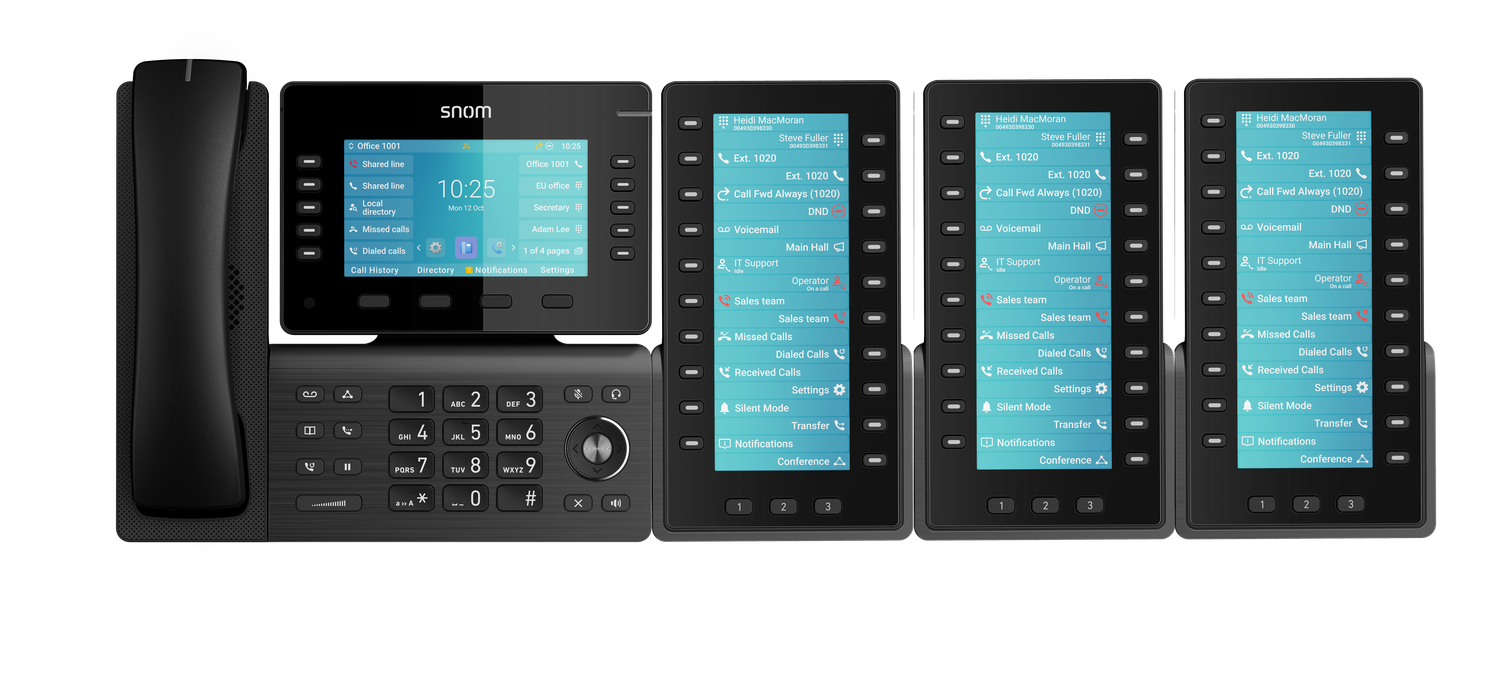

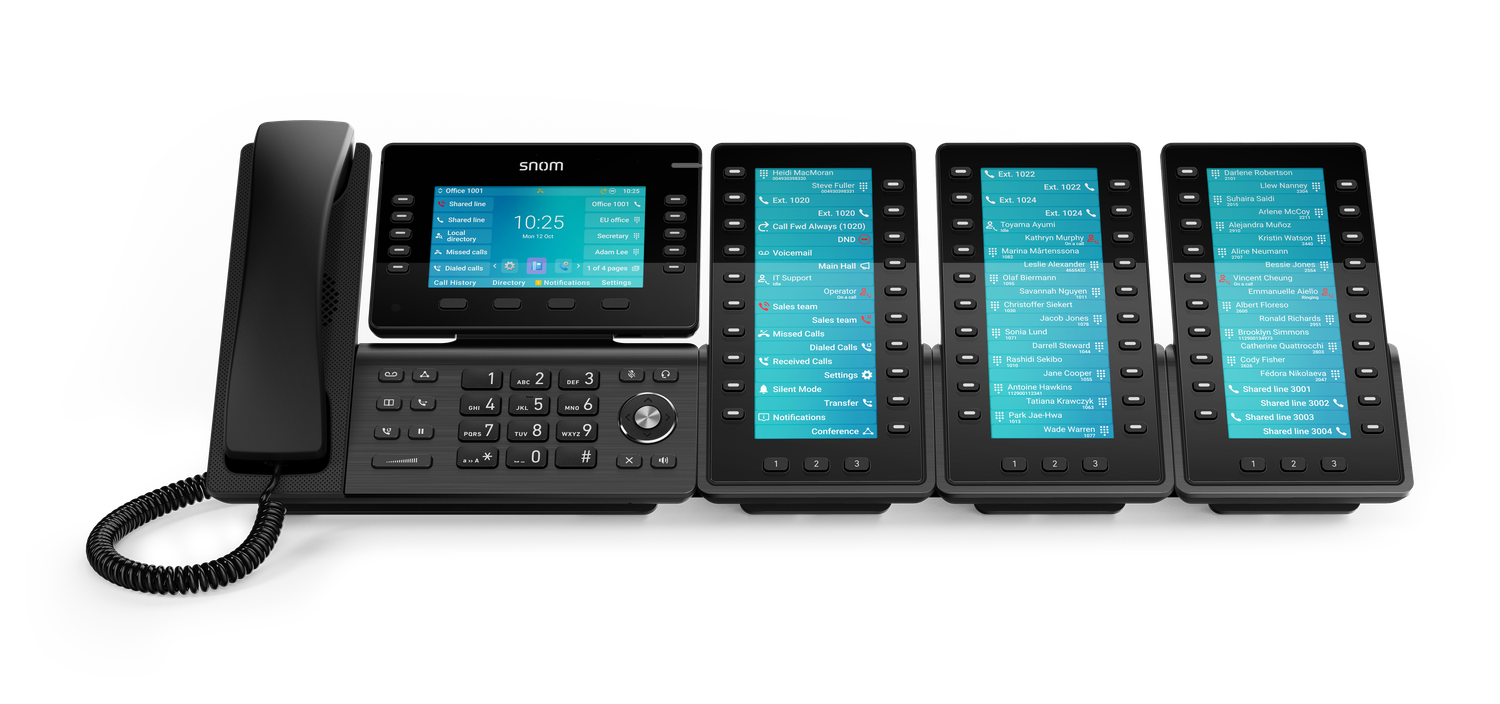

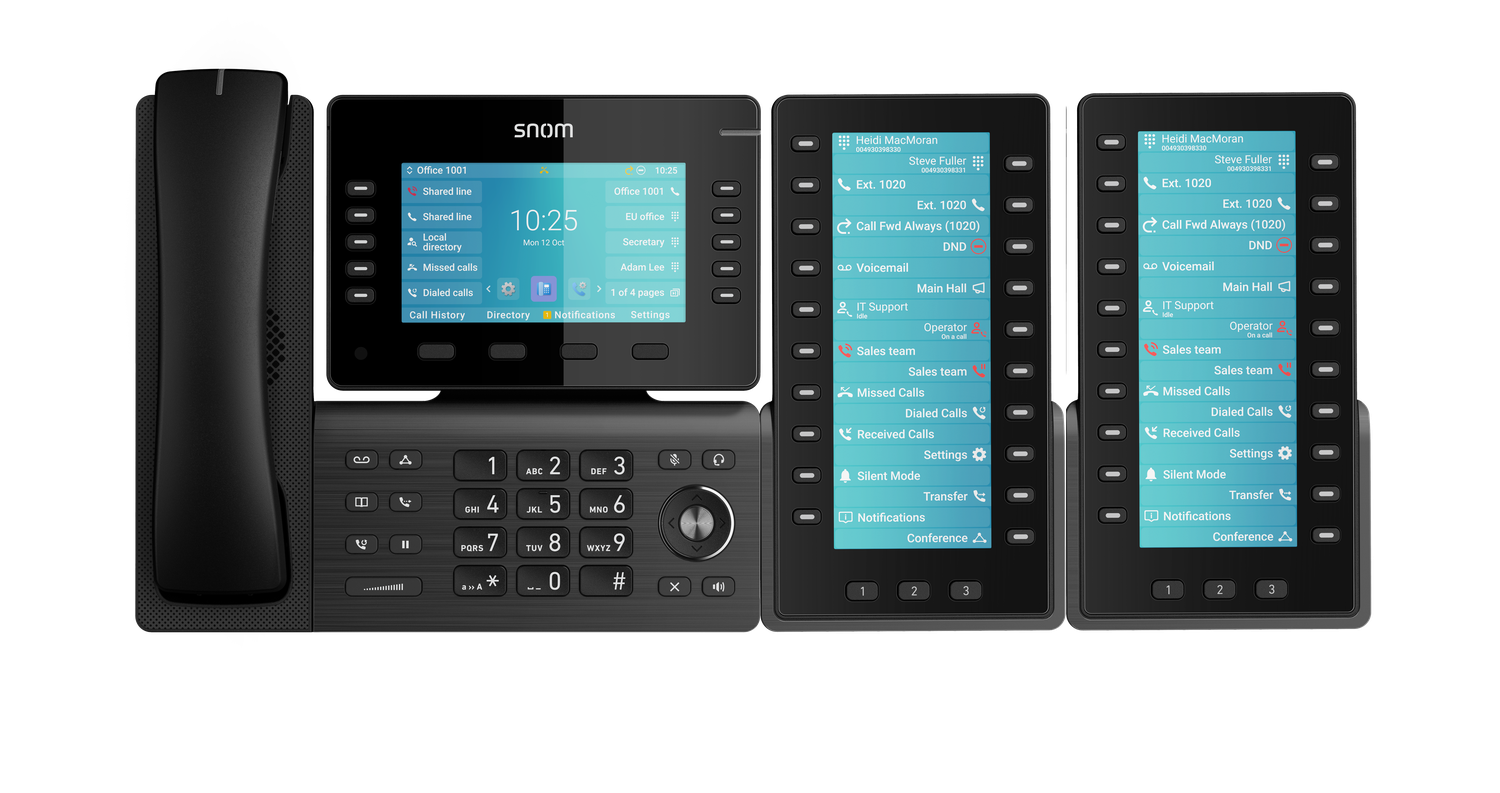

  • Daisy-chain up to 3 models1
  • Single-angle foot stand: 46°
  • Icon supported function keys

Installation

  • Plug and play
  • Completely configurable via host phone

Specifications, Dimensions, and Weight

Dimensions (Approximately)

  • Without foot stand: 5.6″ x 1.6″ x 8.2″
  • With desk stand: 5.6" x 6.5" x 6.3"

Weight (Approximately)

  • 1.0 lb
  • Input voltage: 5Vdc (SELV)
  • Power supply: USB or 5Vdc power adapter2, 10 watts
  • Fixed USB 2.0 type A plug with connecting arm
  • USB 2.0 port, type A
  • Color: Black
  • Warranty: 3 years
  • Part number: 00004562
  • APN: 80-S127-00
  • APN for optional accessories: Power Adapter Snom A6/US clip 26-350200-3UL

Environmental Conditions

  • Ambient temperature: 0°C to 35°C (32°F to 95°F)
  • Storage temperature: -10°C to 45°C (14°F to 113°F)
  • Humidity: 5% to 95% (non-condensing)

Interfaces and Connections

Power options

  • USB: 5V
  • Power Adapter: 1100 - 240 V AC, 50 - 60 Hz | 5 V DC (SELV), 2 A, 10 W

Wired interfaces

Daisy chaining | USB powering | USB headsets and other accessories

  • USB 2.0 type A port
  • USB 2.0 type A plug
  • Power adapter:1coaxial power connector (socket)


Display and Indicators

  • Size: 6.86" (172mm)
  • TFT liquid crystal display (LCD), true color, backlit
  • Resolution: 1,280 x 480 pixels
  • Function key status indication: 20 multi-color LEDs
  • Page key indication: 3 green LEDs
  • Size (W x H): 60mm x 161mm

User interfaces and setup

  • Plug & Play: Completely configurable via host phone

Customization

  • Theme and icon support
  • Custom background image support

Environmental conditions

  • Operating ambient temperature: 0 °C - +35 °C
  • Nonoperating (storage) temperature: -10 °C - +45 °C
  • Humidity (non-condensing): 5% -95%

Package Contents

  • D8C expansion module
  • Foot stand
  • Screws
  • Quick installation guide
  • Safety instructions

Snom Accessories and Compatible Devices

  • Power adapter1: Snom 10 W PSU (PN 00004570)

USB dongle

  • WLAN: A210 (PN 00004384)
  • DECT: A230 (PN 00004386)

Wired headset via USB

  • Monaural: A330M (PN 00004597)
  • Binaural: A330D (PN 00004598)

DECT headset via USB (DECT):

  • A150 (PN 00004388)
BT headset via Bluetooth dongle:

  • A350M (PN 00004658)

IP desk phone (USB)2

  • D810W (PN 00004737)
  • D812 (PN 00004690)
  • D815W (PN 00004691)
  • D862 (PN 00004535)

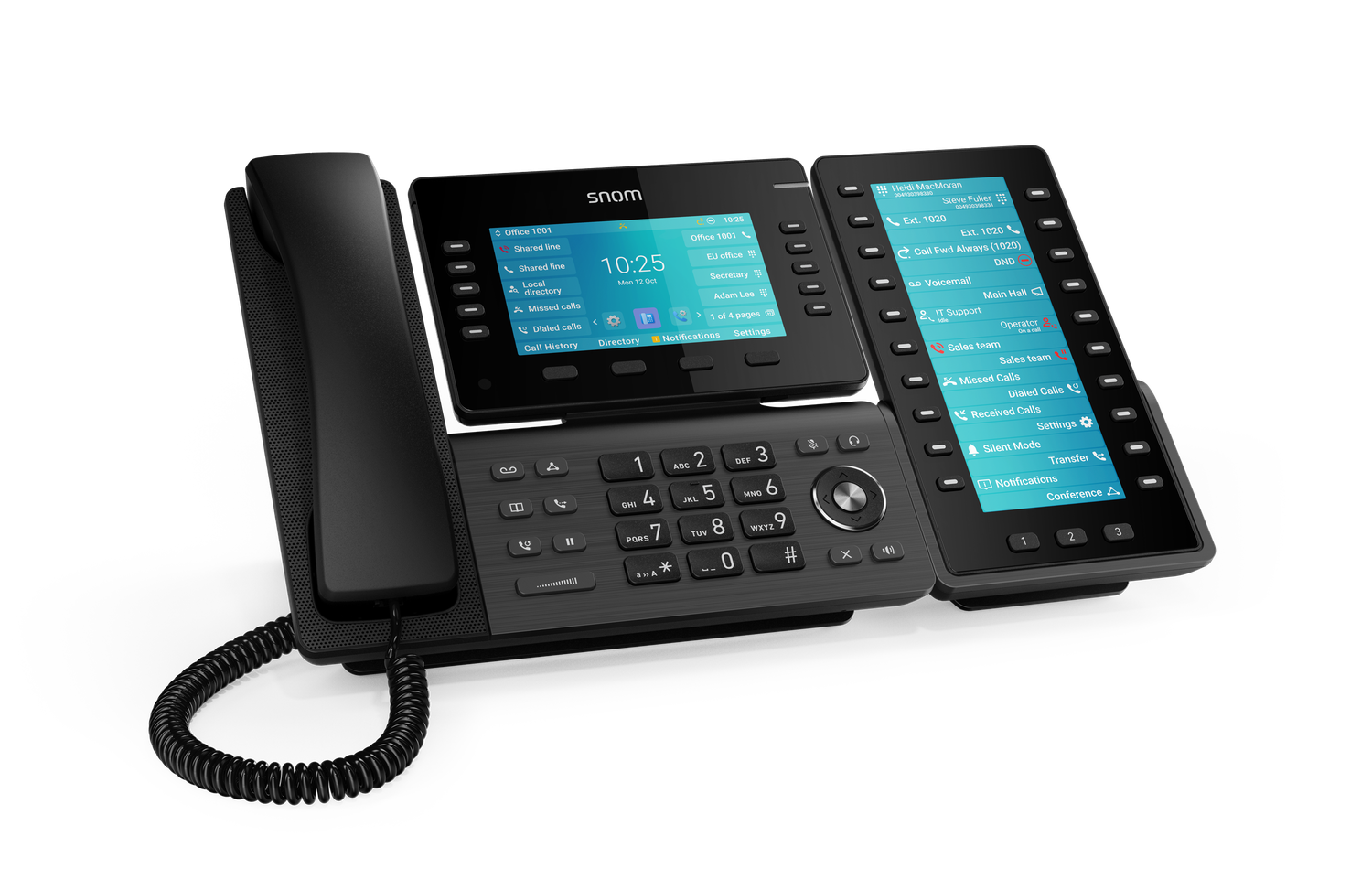

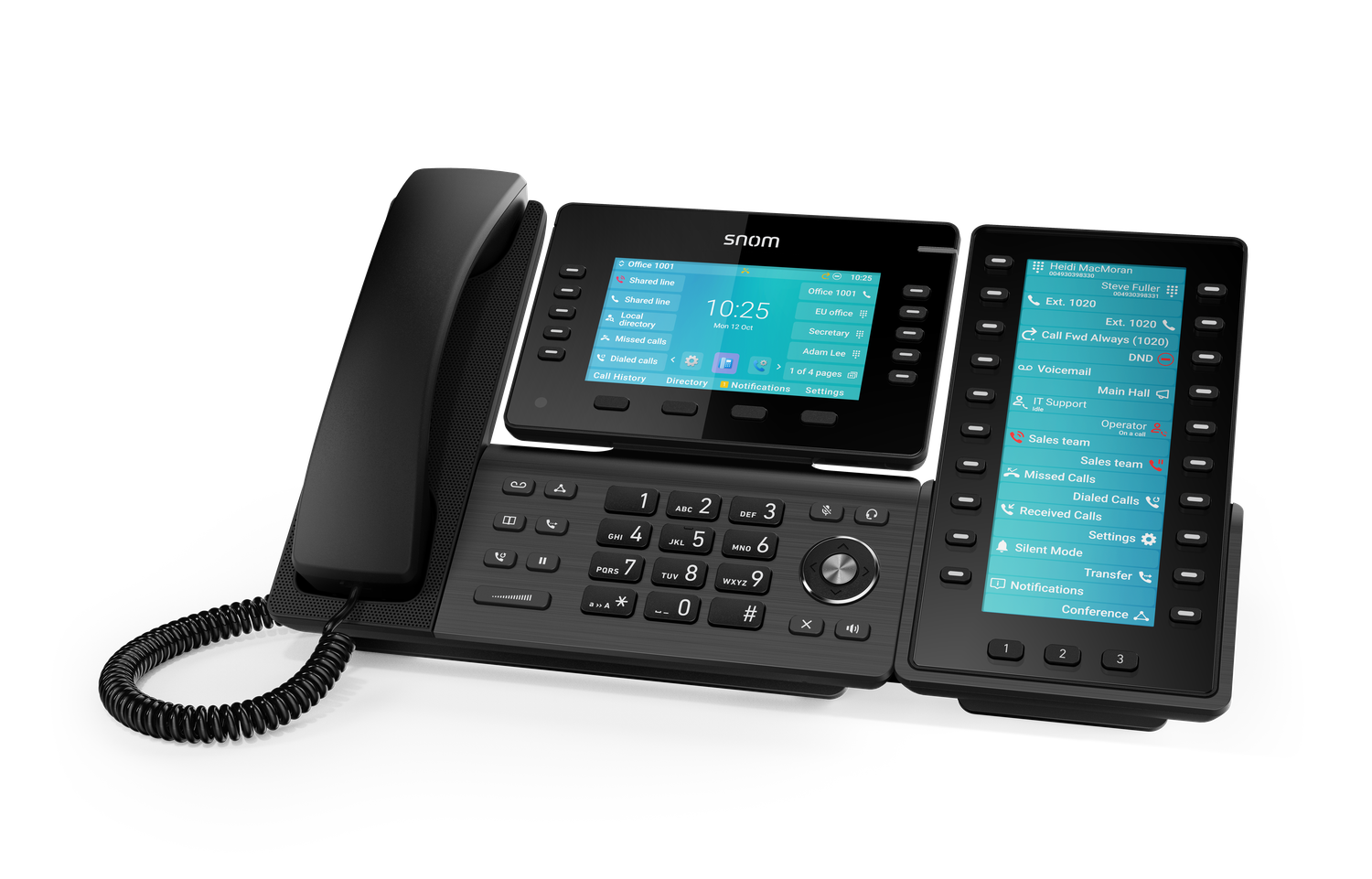

  • D865 (PN 00004536)

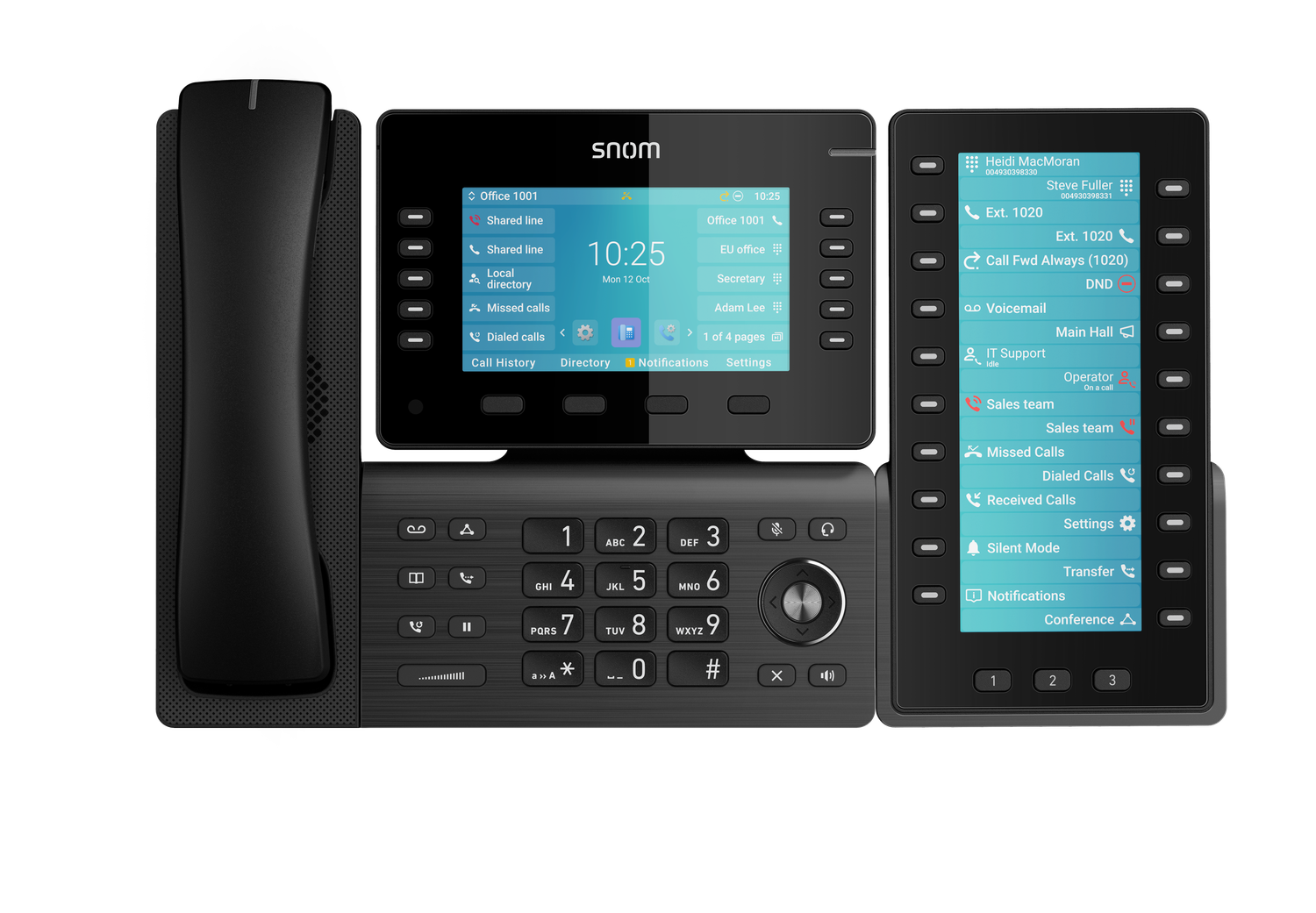

  • D892M (PN 00004539)

  • 1. When two or three modules are used with one phone, a separate power supply needs to be connected to the second module.

  • 2. Requires at least 10.1.180.0 firmware branch
