Workplace Mobility - Handset

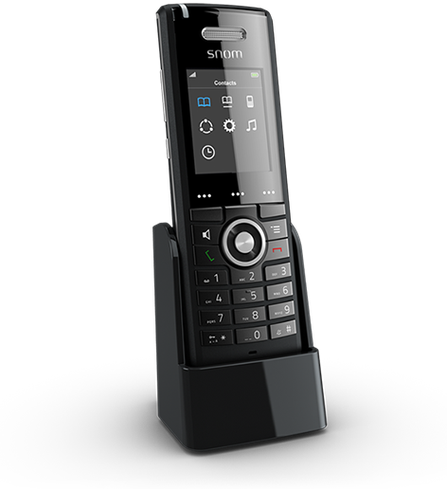

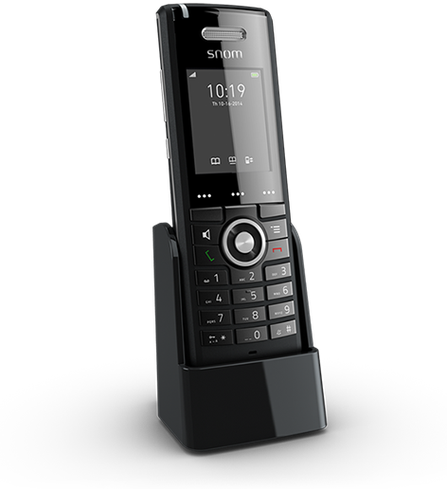

M65 Professional Handset

Versatile mobile business communication functionality

With its sleek appearance and comprehensive range of features, the M65 is ideal for customers requiring mobile coverage across several floors or throughout large buildings. A large backlit 2” color display and backlit keypad provide easy visibility, while wideband audio ensures crystal clear voice quality. The handset features six polyphonic ringtones and vibration alert for incoming calls.

An integrated tricolor LED indicates missed calls, voicemail messages and low battery status. When using the handset with a M700 or M300 base station, users have access to phone system features such as voicemail, automatic call forwarding, call lists, caller identification and direct search of the corporate directory.

Quick summary

  • Wideband speakerphone
  • CAT-iq 1.0 compliant
  • DECT encryption
  • 250 hours standby
  • Local and shared address book
  • headset plug
  • SW upgrade over-the-air
  • Two-line display (2x16 characters)

This is a carousel. Use Next and Previous buttons to navigate.

View 1 - View 2 - View 3 - View 4 -

Product video:

General Information

  • Phone functions with M700 base station
  • Two simultaneous calls
  • Directory with 100 contact entries
  • Central directory (common local directory on base or external directory via LDAP)
  • 8 speed dial numbers (number keys 2 - 9)
  • Caller identification (CLIP)
  • Redial (via dialed calls list)
  • Call waiting
  • Auto answer
  • Call lists (all calls, missed, received, dialed calls),
  • 50 entries total
  • Hold
  • Call swapping (active call and call on hold)
  • Blind and attended transfer
  • Call forwarding
  • 3-way conference on the phone
  • DND mode (do not disturb)
  • Hide own outgoing ID (CLIR)
  • Missed call notification
  • MWI - Voice message waiting notification
  • Codecs, audio

Handset

  • Weight: approx. 123g (handset with battery)
  • Dimensions: approx. (mm) 141x48x24 (LxWxD)
  • Connector: 3.5 mm standard phone jack for wired headsets
  • Antenna diversity (two internal omni-directional antennas for better transmission and reception)
  • Hearing aid compatible (HAC)

Battery

  • Type: Lithium-ion, 1100mAh, 3.7V, 4.1 W
  • Talk time WB: Up to 16 hours
  • Talk time NB: Up to 18 hours
  • Standby time: Approx. 200-250 hours (10 days)
  • Charging time: Up to 8 hours from empty

Charger

  • Input: 5,5V DC, 600mA
  • Connector: 5.5 mm DC jack
  • Charging indicator: Blue LED - light is on when handset is charging in cradle
  • Power adapter
    • Input power: 100-240 AC Volt, 50/60 Hz, 250mA
    • Output power: 5.5V DC, 600mA
  • Plug: Patented interchangeable clips. EU and US clips included, UK clip available optionally

Range

  • Indoors: Up to 50 meters
  • Outdoors: Up to 300 meters (for indoor use only)

DECT

  • Frequency bands:
    • 1880-1900 MHz (EU)
    • 1910-1930 MHz (Latin America)
    • 1920-1930 MHz (US)
  • Output power: EU < 250 mW, USA < 140 mW
  • Protocols: DECT, DECT 6.0, CAT-iq1.0 (wideband)
  • Wideband voice
  • Authentication/encryption of base and handset

Standards Conformance

  • EN 301406 (TBR6)
  • EN 30176 - 2 (TBR10)
  • EN 60950 - 1 (Safety)
  • IEC60950 -1
  • CSA c-CSA-us / UL60950 - 1
  • EN 301489 (EMC,ESD)
  • RF (EMF, SAR)
  • FCC part 15D, conducted & radiated
  • FCC part 15B
  • RSS213
  • TIA 1083,
  • FCC part 68/CS-03 part V (HAC compliance)

User Interface

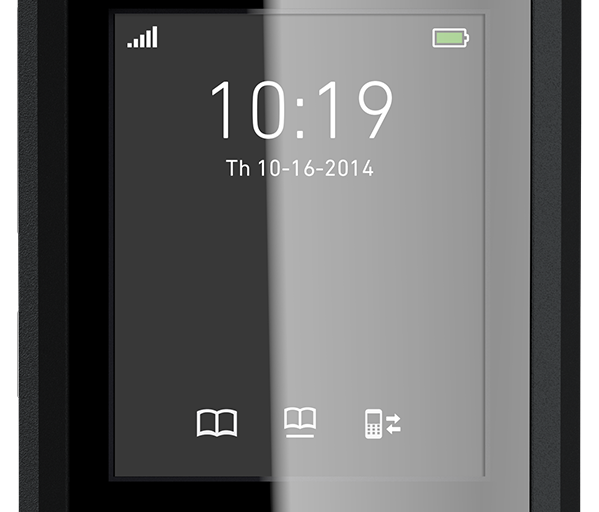

  • Display:
  • 5 cm (2“) diagonal
  • 176 x 220 pixels
  • 262k TFT color LCD with backlight
  • 8 lines, height 16 pixels/line, 16 characters per line; 1 status line, 6 lines for menus or context area, 1 context-sensitive function key line

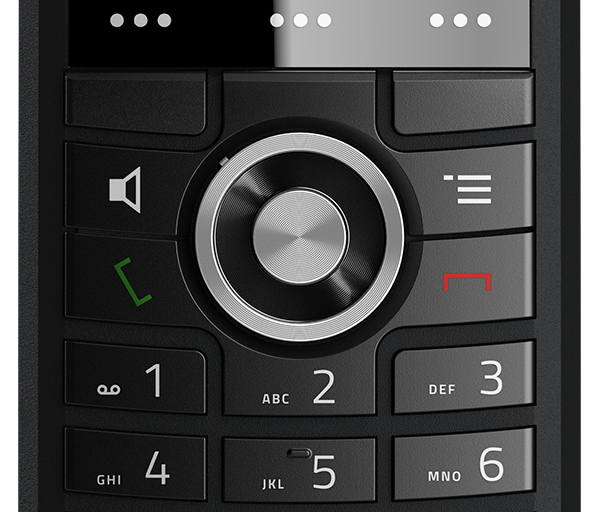

  • Backlit keypad with 24 keys
  • Standard ITU telephone keypad, 12 keys, 4x3, with star and pound/hash key
  • Three context-sensitive function keys
  • 5 navigation keys (left, right, up, down, OK)
  • Off-hook key, cancel key
  • Speakerphone key with red LED when speakerphone is on
  • Menu key

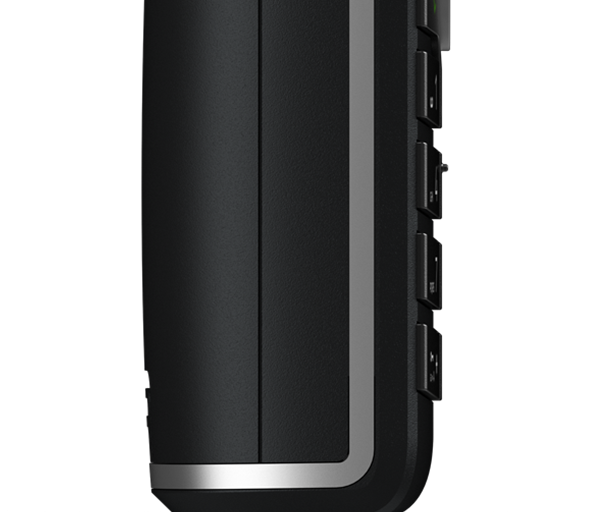

  • Three side keys (volume up/down, mute)
  • Comfortable and intuitive menu structure
  • Selection of ring tones

Codec Negotiation

  • CAT-iq wideband audio
  • G.722, G.726, G.711

Installation

  • Automatic registration to extension set on base
  • Software update: Over the air via M700 base station
  • Date and time synchronization from base station

Compatible Base Stations

  • M700 DEC
