M85 Industrial Handset

Rugged, durable DECT handset

The M85 industrial handset has been developed for the most demanding day-to-day workplace requirements. This modern IP-DECT phone is especially resilient and shockproof. The M85 also boasts cutting-edge occupational safety features such as integrated dead man’s sensor and an alarm function.

Robust and reliable: The Snom M85 has been developed for indoor and outdoor use in industrial settings. Not only is the phone’s casing robust and shockproof – it also offers protection from water and dust. Thanks to a wide DECT range, a long-lasting rechargeable battery and integrated Bluetooth, it also offers maximum flexibility in how it is used. With its safety features and its robust construction, it lends itself well to use in special environments such as warehouses, construction sites, etc.

*NEW* Alarm functions: Programmable alarm key: the Snom M85 features a fully programmable alarm key. The phone can be programmed to send an automatic cry for help to any chosen number when this key is pressed.

*NEW* Dead man’s sensor: Thanks to its integrated location sensors, the Snom M85 comes with a so-called dead man’s feature. If the handset registers an extended period of motionlessness when laid down, if programmed to do so, it will send an emergency message in order that, for example, an unconscious employee can be given assistance. In addition to sensors, the Snom M85 features an optional wrist loop attached to the phone which likewise automatically triggers an alarm or a call for help if suddenly detached from the handset.

Connectivity: The M85 is equipped with Bluetooth and can also be connected to cordless or wired headsets via a 3.5 mm jack. The IP65 rating that attests to protection from water and dust makes the handset especially useful for special industrial areas or on construction sites. In combination with the M700 or M300 base station, the cordless M85 also boasts a wide array of phone functions such as an answering machine, automatic call forwarding, a call list, caller identification and direct searches in the company directory.

Quick summary

  • Rugged, durable IP65 DECT handset
  • Shockproof, splash-proof, dust-proof
  • Suitable for outdoor areas
  • Programmable alarm key
  • Bluetooth compatible

Product video:

Handset

  • Weight: approx. 175g (handset with battery)
  • Dimensions: approx. (mm) 152x48x28 (LxWxD)
  • Connector: 3.5 mm standard phone jack for wired headsets
  • Antenna diversity (two internal omni-directional antennas for better transmission and reception)
  • Hearing aid compatible (HAC)

Battery

  • Type: Lithium-ion, 1100mAh, 3.7V, 4.1 W
  • Talk time WB: Up to 12 hours
  • Talk time NB: Up to 17 hours
  • Standby time: Approx. 200 hours (8 days)
  • Charging time: Up to 8 hours from empty

Charger

  • Input: 5,5V DC, 600mA
  • Connector: 5.5 mm DC jack
  • Charging indicator: Blue LED - light is on when handset is charging in cradle

Power Adapter

  • Input power: 100-240 AC Volt, 50/60 Hz, 250mA
  • Output power: 5.5V DC, 600mA
  • Plug: Patented interchangeable clips. EU and US clips included, UK clip available optionally

Range

  • Indoors: Up to 50 meters
  • Outdoors: Up to 300 meters

DECT

  • Frequency bands:
    • 1880-1900 MHz (EU)
    • 1910-1930 MHz (Latin America)
    • 1920-1930 MHz (US)
  • Output power: EU < 250 mW, USA < 140 mW
  • Protocols: DECT, DECT 6.0, CAT-iq1.0 (wideband)
  • Wideband voice
  • Authentication/encryption of base and handset

DECT

  • Frequency bands:
    • 1880-1900 MHz (EU)
    • 1910-1930 MHz (Latin America)
    • 1920-1930 MHz (US)
  • Output power: EU < 250 mW, USA < 140 mW
  • Protocols: DECT, DECT 6.0, CAT-iq1.0 (wideband)
  • Wideband voice
  • Authentication/encryption of base and handset

User Interface

  • Display:
  • 5 cm (2“) diagonal
  • 176 x 220 pixels
  • 262k
  • TFT color LCD with backlight
  • 8 lines, height 16 pixels/line, 16 characters per line: 1 status line, 6 lines for menus or context area, 1 context-sensitive function key line

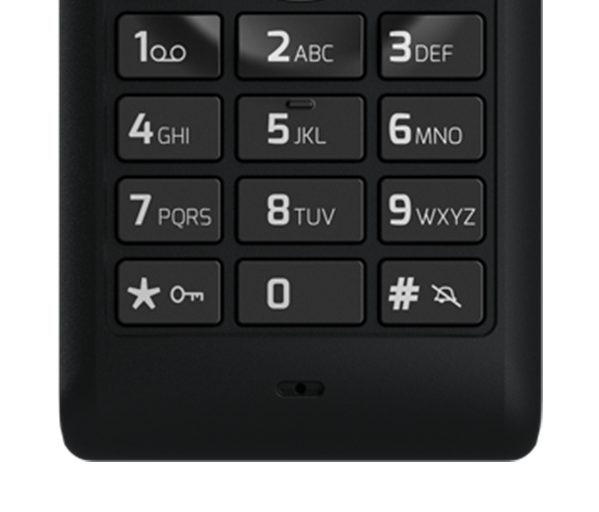

  • Backlit keypad with 24 keys:
  • Standard ITU telephone keypad, 12 keys, 4x3,  with star and pound/hash key
  • Three context-sensitive function keys
  • 5 navigation keys (left, right, up, down, OK)
  • Off-hook key, cancel key
  • Speakerphone key with red LED when speakerphone is on
  • Menu key
  • Three side keys (volume up/down, mute)
  • Comfortable and intuitive menu structure
  • Selection of ring tones
  • Tricolor LED indication of missed calls/new voice messages, low battery
  • Speakerphone
  • Mute microphone

Technical Specifications

  • Phone functions with M300/M700 base station
  • Two simultaneous calls
  • Directory with 100 contact entries
  • Central directory (common local directory on base or external directory via LDAP)
  • 8 speed dial numbers (number keys 2 - 9)
  • Caller identification (CLIP)
  • Redial (via dialed calls list)
  • Call waiting
  • Auto answer
  • Call lists (all calls, missed, received, dialed calls),
  • 50 entries total
  • Hold
  • Call swapping (active call and call on hold)
  • Blind and attended transfer
  • Call forwarding
  • 3-way conference on the phone
  • DND mode (do not disturb)
  • Hide own outgoing ID (CLIR)
  • Missed call notification
  • MWI - Voice message waiting notification
  • Codecs, audio

Codec Negotiation

  • CA
  • T-iq wideband audio
  • G.722, G.726, G.711

Installation

  • Automatic registration to extension set on base
  • Software update: Over the air via M300 or M700 base station
  • Date and time synchronization from base station
